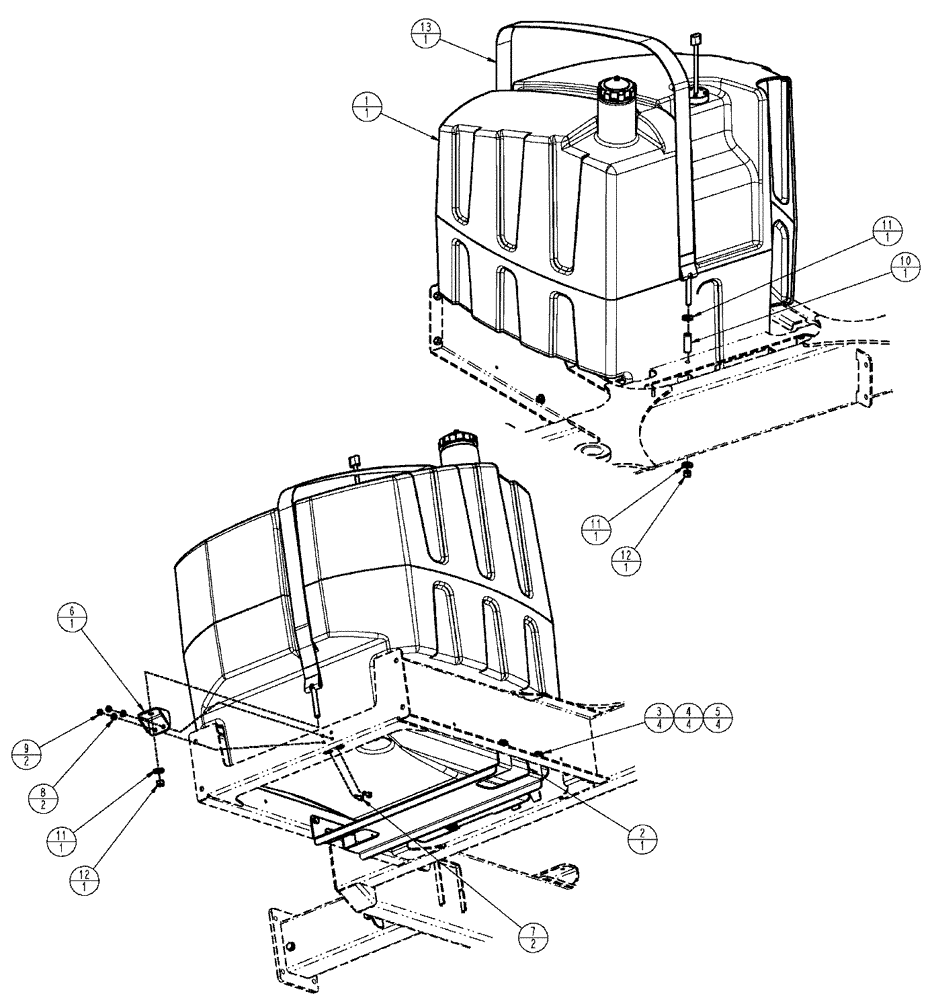

Запчасти Case IH SPX3320 (04-030) - FUEL GROUP, TANK MOUNTING Suspension & Frame

1

87271411

TANK

120 Gallon

1шт.

See Fig. 04-031

1шт.

2

87272545

SUPPORT

FUEL TANK

1шт.

3

86980400

BOLT,Hex, M10 x 25mm, Cl 8.8, Full Thd

1шт.

4

86980515

NUT,Hex, M10 x 1.5, Cl 8.8, DOR

1шт.

5

87529312

WASHER,11mm ID x 24mm OD x 3mm Thk

1шт.

6

87664092

MOUNT

Tank Strap

1шт.

7

86980379

BOLT,Hex, M8 x 1.25 x 20mm, Cl 8.8

1шт.

8

87529315

WASHER,9mm ID x 17mm OD x 2mm Thk

9 x 17 x 2 mm, HDN, DOR

1шт.

9

9991588

NUT,M8 x 1.25, Cl 8

1шт.

10

BN21877

3/4 OD X 12 GA X 2.0

1шт.

11

87529310

WASHER,13.5mm ID x 28mm OD x 4mm Thk

13.5 x 28 x 4 mm, HDN, DOR

1шт.

12

BN300407

FLANGE NUT

Flg, 1/2"-13, G8

1шт.

13

87664095

STRAP

FUEL TANK

1шт.
