Запчасти Case IH SPX3320 (04-029) - FUEL GROUP, FITTINGS & LINES Suspension & Frame

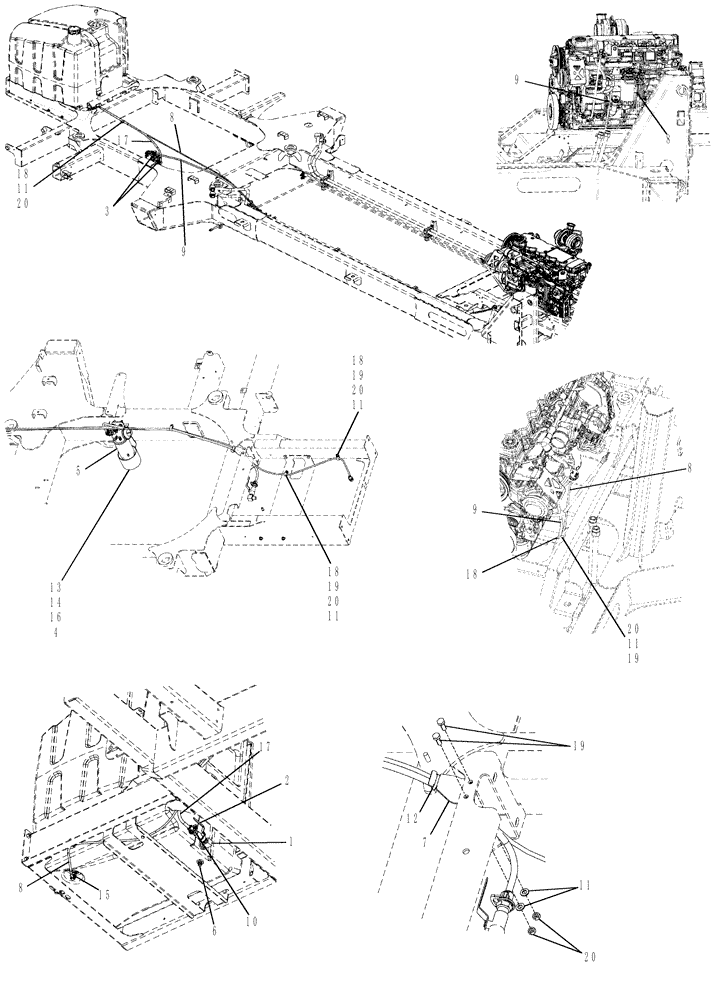

Схема запчастей Case IH SPX3320 - (04-029) - FUEL GROUP, FITTINGS & LINES Suspension & Frame
18
11
9
19
8
11
18
9
18
20
8
13
5
15
9
14
3
2
7
6
20
1
17
8
11
20
20
11
12
20
10
17
18
16
11
19
4
19
8
19

Артикул

Название

Примечание

Количество

1

217-1226

ELBOW,90 Degree, 1/2"-14 Male

1шт.

2

87265539

VALVE

valve, 1/2" npt full

1шт.

3

8602542

ADAPTER,M14 x 1.5 x 16mm ID x 7.90mm ID

246 NG12/M14 X 1.5

2шт.

4

87617087

GUARD

Fuel Filter

1шт.

5

87533314

FUEL FILTER

1шт.

5a

87519307

SENSOR

WATER

1шт.

Associated Part of Fuel Filter A, P/N 87533314

1шт.

5b

87533313

FUEL FILTER

FUEL

1шт.

Service Parts for Ref. 5

1шт.

6

217-406

PLUG,Hex Hd, 1/4" - 18 NPT

1шт.

7

84203087

MOUNT

Fuel Line

1шт.

8

87272536

FUEL HOSE

FUEL, ENGINE TO TANK

1шт.

9

87272534

FUEL HOSE

FUEL, FILTER TO ENGIN

1шт.

10

87270102

FITTING,1/2" NPTF to Quick Connect

BRASS, NG12 X 1/2 NPTF

1шт.

11

87529315

WASHER,9mm ID x 17mm OD x 2mm Thk

9 X 17 X 2MM HTS DOR HDN

6шт.

12

22-824

CABLE TIE,3/16" x 7 1/4"

CABLE STRAP

1шт.

13

86980515

NUT,Hex, M10 x 1.5, Cl 8.8, DOR

3шт.

14

86980403

BOLT,Hex, M10 x 1.5 x 40mm, Cl 8.8, Full Thd

3шт.

15

87270105

FITTING

BRASS, NG8 X 3/8 NPTF

1шт.

16

87529312

WASHER,11mm ID x 24mm OD x 3mm Thk

3шт.

17

87272535

FUEL HOSE

FUEL,TANK TO FILTER, Includes Nylon Fittings

1шт.

18

515-22190

CLAMP,3/4", Insul, 5/16" Bolt

4шт.

19

86980379

BOLT,Hex, M8 x 1.25 x 20mm, Cl 8.8

5шт.

20

86980514

LOCK NUT,Hex, M8, Cl 8, DOR

6шт.

Выбрано товаров: 24
