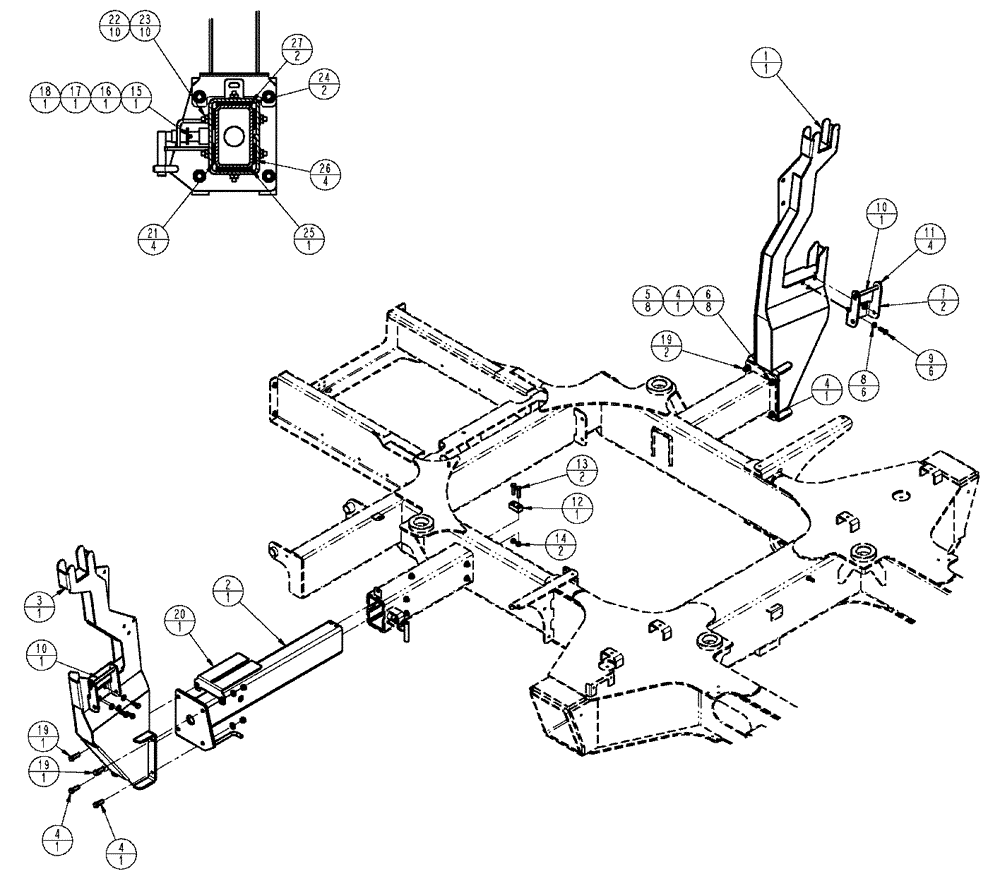

Запчасти Case IH SPX3320 (04-028) - CRADLE GROUP, BOOM Suspension & Frame

1

87609592

CRADLE

RH Boom

1шт.

2

87270810

SLIDE

Cradle

1шт.

3

87478658

CRADLE

CRADLE WLD, LH

1шт.

4

86980422

BOLT,Hex, M12 x 35mm, Cl 8.8

M12-1.75 X 35, HH, 8.8 DOR

6шт.

5

86981496

WASHER,13.3mm ID x 24.5mm OD x 3mm Thk

8шт.

6

100038

NUT,M12 x 1.75, Cl 8

8шт.

7

342585A1

PLATE

BOOM LOCK

2шт.

8

87529312

WASHER,11mm ID x 24mm OD x 3mm Thk

6шт.

9

86980401

BOLT,Hex, M10 x 1.5 x 30mm, Cl 8.8, Full Thd

6шт.

10

342586A1

PIN,12.7mm OD x 154mm L

BOOM LOCK

2шт.

11

BN71006

COTTER PIN

1/8", #11

4шт.

12

BN321925

STOP

BOOM CRADLE

1шт.

13

86980403

BOLT,Hex, M10 x 1.5 x 40mm, Cl 8.8, Full Thd

2шт.

14

86980515

NUT,Hex, M10 x 1.5, Cl 8.8, DOR

2шт.

15

BN321930

PIN

WELDMENT, CRADLE STOP

1шт.

16

BN31937

SPRING

COMPR .905 X .765 2

1шт.

17

BN50178

WASHER

1.25 OD X .75ID X 10GA

1шт.

18

BN31444

PIN, ROLL

1/4 X 1-1/2

1шт.

19

86980423

BOLT,Hex, M12 x 1.75 x 40mm, Cl 8.8, Full Thd

2шт.

20

87564073

PLATE

FRONT WALKWAY

1шт.

21

87270958

SLIDE

BOOM CRADLE

4шт.

22

BN50779

BOLT,5/16"-18 X 1.00", EH, DOR

10шт.

23

BN50057

LOCK NUT,Lock, 5/16"-18, Stainless Steel

10шт.

24

BN321038

LINER

TOP

2шт.

25

342580A1

SHIM

cradle liner, bottom

1шт.

26

87272436

SHIM

Boom Cradle Slide

4шт.

27

87664090

SHIM

Cradle Liner, Bottom

2шт.
