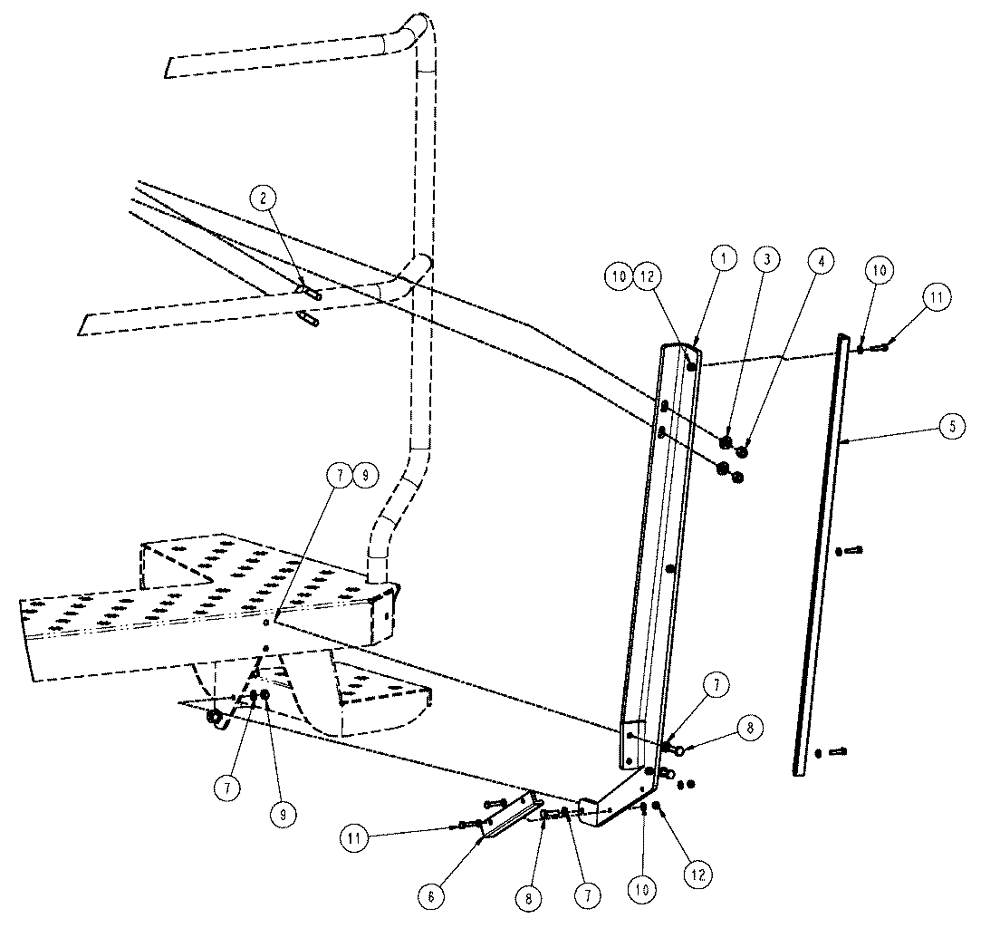

Запчасти Case IH SPX3320 (04-027) - WALKWAY PROTECTOR GROUP Suspension & Frame

1

87265743

BRACKET, SUPPORTING

WALKWAY PROTECTOR

1шт.

2

87267464

U-BOLT

3/8"-16 x 1.5 ID x 2.50

1шт.

3

87529237

WASHER,0.41" ID x 0.81" OD x 0.07" Thk

0.406 x 0.812 x 0.065, HTS, DOR, HDN

2шт.

4

87343970

NUT,3/8"-16, G8, DOR

2шт.

5

87268630

ANGLE

WALKWAY PROTECTOR

1шт.

6

87268631

ANGLE

WALKWAY PROTECTOR

1шт.

7

87529315

WASHER,9mm ID x 17mm OD x 2mm Thk

9 x 17 x 2 mm, HDN, DOR

6шт.

8

86980380

BOLT,Hex, M8 x 1.25 x 25mm, Cl 8.8, Full Thd

3шт.

9

9991588

NUT,M8 x 1.25, Cl 8

3шт.

10

86588450

WASHER,6.6mm ID x 12mm OD x 1.6mm Thk

10шт.

11

86980361

BOLT,Hex, M6 x 1 x 25mm, Cl 8.8, Full Thd

5шт.

12

353308

NUT,M6 x 1.0, Cl 8

5шт.
