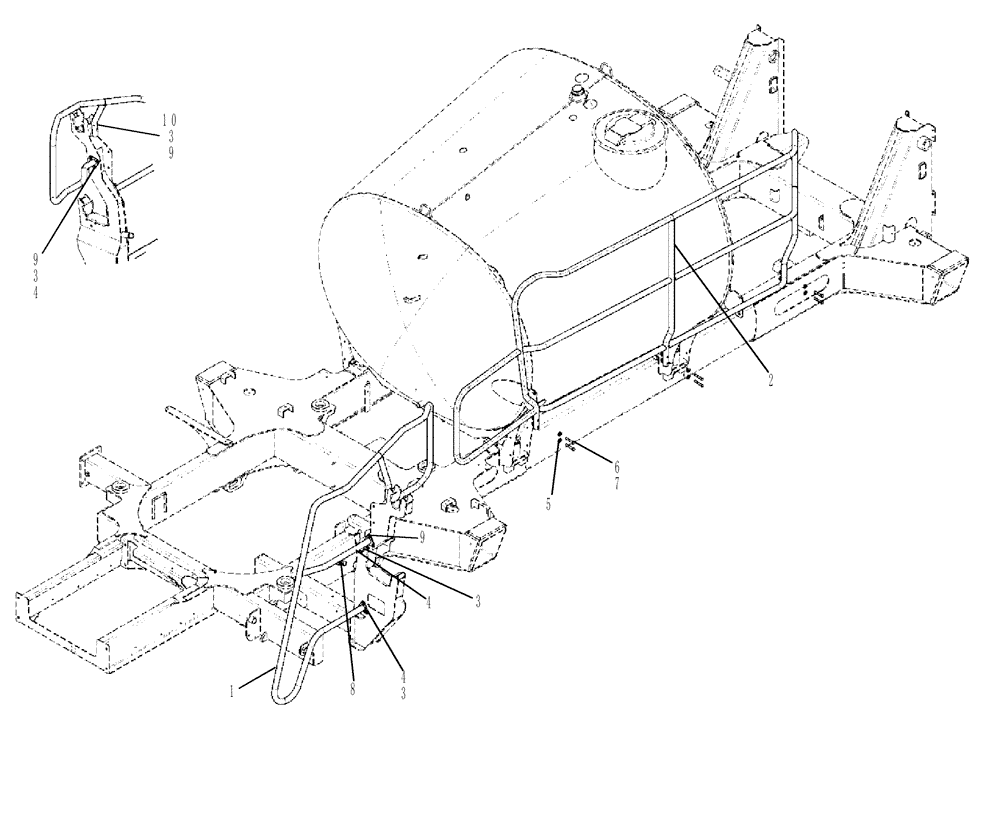

Запчасти Case IH SPX3320 (04-026[02]) - FRONT/MID HANDRAIL GROUP - Y8T024627 AND AFTER Suspension & Frame

1

84127234

HANDRAIL

Front

1шт.

2

84127236

HANDRAIL

Mid

1шт.

3

87529316

WASHER,9mm ID x 21mm OD x 2.5mm Thk

10шт.

4

86980380

BOLT,Hex, M8 x 1.25 x 25mm, Cl 8.8, Full Thd

8шт.

5

87529312

WASHER,11mm ID x 24mm OD x 3mm Thk

12шт.

6

86980406

BOLT,Hex, M10 x 1.5 x 60mm, Cl 8.8

6шт.

7

86980515

NUT,Hex, M10 x 1.5, Cl 8.8, DOR

6шт.

8

363226A1

BUMPER

DOOR

1шт.

9

86980514

LOCK NUT,Hex, M8, Cl 8, DOR

5шт.

10

86980385

BOLT,Hex, M8 x 1.25 x 50mm, Cl 8.8

1шт.
