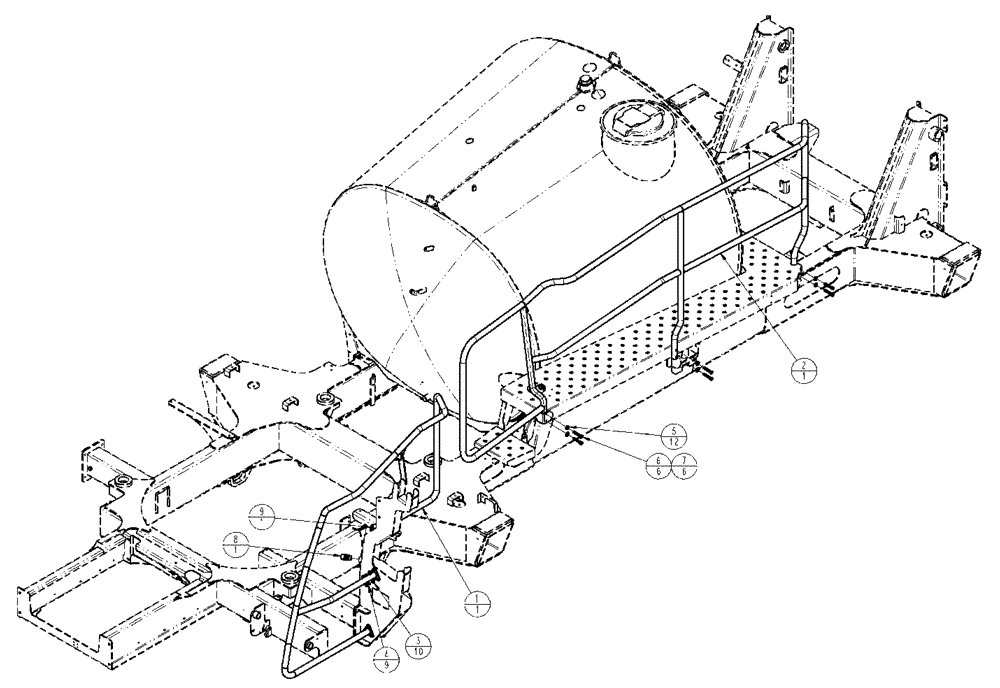

Запчасти Case IH SPX3320 (04-026[01]) - FRONT/MID HANDRAIL GROUP Suspension & Frame

1

87271177

HANDRAIL

WALKWAY

1шт.

2

87272551

HANDRAIL

Mid

1шт.

3

87529316

WASHER,9mm ID x 21mm OD x 2.5mm Thk

10шт.

4

86980380

BOLT,Hex, M8 x 1.25 x 25mm, Cl 8.8, Full Thd

9шт.

5

87529312

WASHER,11mm ID x 24mm OD x 3mm Thk

12шт.

6

86980406

BOLT,Hex, M10 x 1.5 x 60mm, Cl 8.8

6шт.

7

86980515

NUT,Hex, M10 x 1.5, Cl 8.8, DOR

6шт.

8

363226A1

BUMPER

door

1шт.

9

9991588

NUT,M8 x 1.25, Cl 8

1шт.
