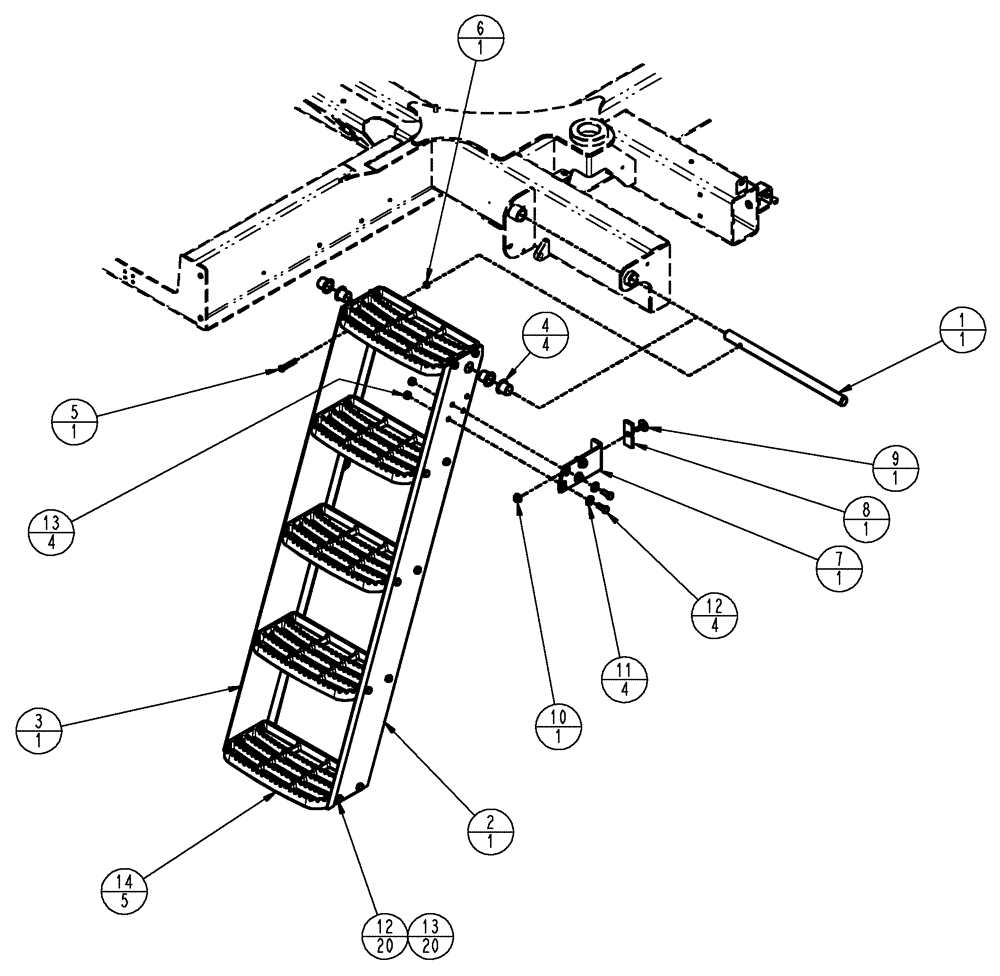

Запчасти Case IH SPX3320 (04-025) - LADDER GROUP, LH Suspension & Frame

1

BN320322

PIN,25.4mm OD x 444mm L

LADDER PIVOT

1шт.

2

342268A1

BRACKET, SUPPORTING

mount, ladder steps

1шт.

3

342269A1

BRACKET, SUPPORTING

mount, ladder steps

1шт.

4

BN321159

BUSHING,25.44mm ID x 27.77mm OD x 26.54mm L

4шт.

5

86980385

BOLT,Hex, M8 x 1.25 x 50mm, Cl 8.8

4шт.

6

9991588

NUT,M8 x 1.25, Cl 8

4шт.

7

BN323392

STOP

LADDER

1шт.

8

BN320307

PAD

LADDER STOP

1шт.

9

BN50779

BOLT,5/16"-18 X 1.00", EH, DOR

1шт.

10

BN50057

LOCK NUT,Lock, 5/16"-18, Stainless Steel

1шт.

12

86980400

BOLT,Hex, M10 x 25mm, Cl 8.8, Full Thd

24шт.

11

87529312

WASHER,11mm ID x 24mm OD x 3mm Thk

4шт.

13

86980515

NUT,Hex, M10 x 1.5, Cl 8.8, DOR

24шт.

14

87270245

STEP

BLACK ALUMINUM

5шт.
