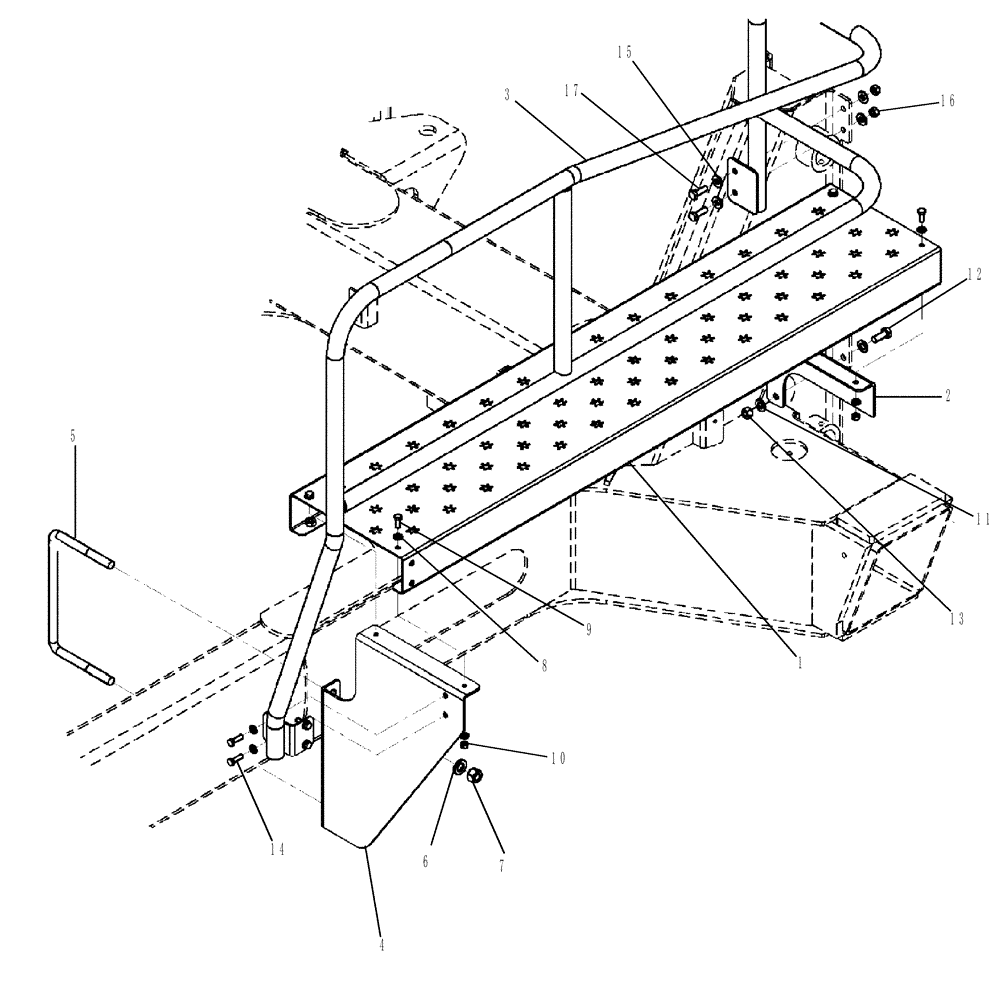

Запчасти Case IH SPX3320 (04-022[01]) - WALKWAY GROUP, REAR - BSN Y8T024627 Suspension & Frame

1

87269248

EXTENSION

WALKWAY, REAR

1шт.

2

NS

NOT SERVICED

MOUNT, WALKWAY SUPPORT

1шт.

3

87269247

HANDRAIL

REAR

1шт.

4

87271689

MOUNTING PLATE

REAR WALKWAY

1шт.

5

343924A1

U-BOLT

M16-2 X 150 X 256

1шт.

6

87529306

WASHER,17.5mm ID x 30mm OD x 4mm Thk

17.5 X 30 X 4MM HTS DOR HDN

2шт.

7

86980517

NUT,Hex, M16 - 2, Cl 8.8, DOR

2шт.

8

87529315

WASHER,9mm ID x 17mm OD x 2mm Thk

9 X 17 X 2MM HTS DOR HDN

12шт.

9

86980379

BOLT,Hex, M8 x 1.25 x 20mm, Cl 8.8

4шт.

10

86980514

LOCK NUT,Hex, M8, Cl 8, DOR

4шт.

11

86981496

WASHER,13.3mm ID x 24.5mm OD x 3mm Thk

4шт.

12

86980420

BOLT,Hex, M12 x 1.75 x 30mm, Cl 8.8, Full Thd

2шт.

13

86980516

NUT,Prev Torque, Hex, M12, 1.75 Pitch, Cl 8, DOR

2шт.

14

86980380

BOLT,Hex, M8 x 1.25 x 25mm, Cl 8.8, Full Thd

4шт.

15

87529312

WASHER,11mm ID x 24mm OD x 3mm Thk

4шт.

16

86980515

NUT,Hex, M10 x 1.5, Cl 8.8, DOR

2шт.

17

86980401

BOLT,Hex, M10 x 1.5 x 30mm, Cl 8.8, Full Thd

2шт.
