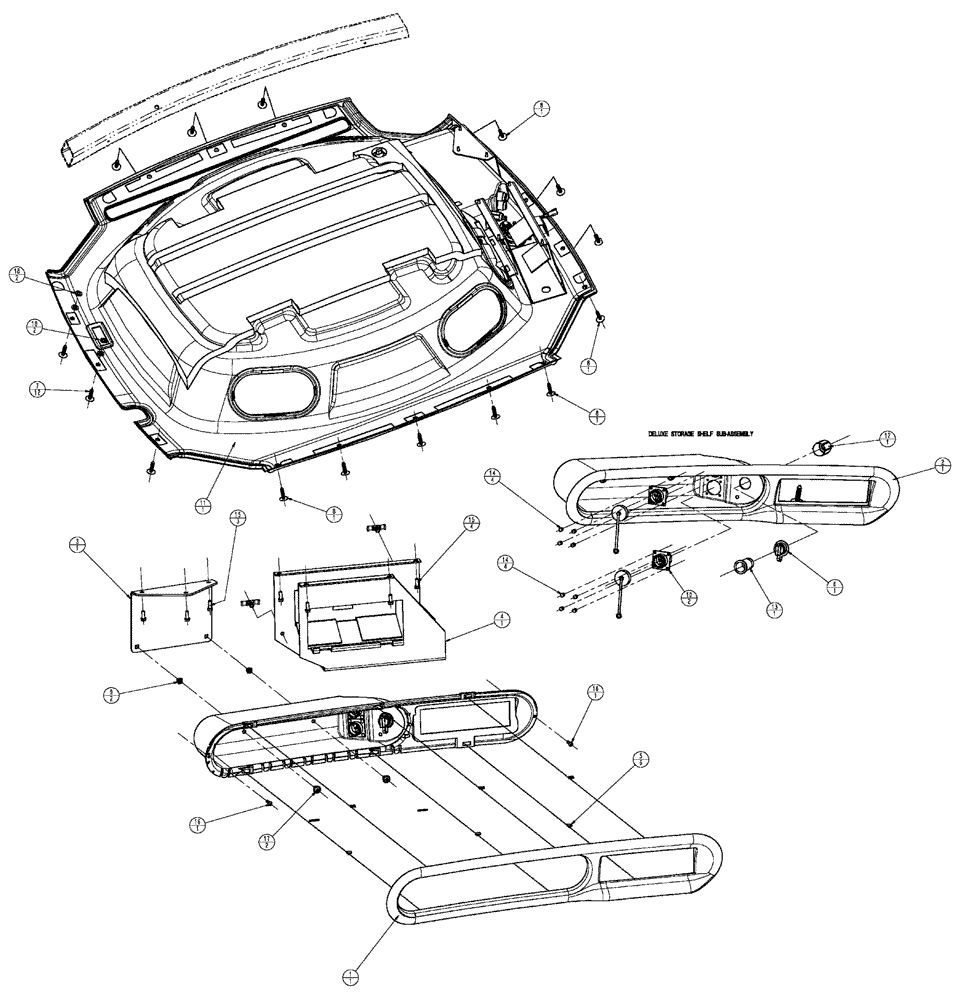

Запчасти Case IH SPX3320 (01-002) - DELUXE HEADLINER, PACKAGE Cab Interior

358794A2

BEZEL

DLX STORAGE SHELF

1шт.

2

358795A1

BOX

STORAGE SHELF

1шт.

3

409205A2

BRACKET

STORAGE SHELF

1шт.

4

428264A5

BRACKET

RADIO MOUNTING

1шт.

5

308538A2

CLIP

STORAGE SHELF

6шт.

6

190812A1

COVER

CIGARETTE LIGHTER

1шт.

7

87621184

FASTENER

BUTTON TREE CLIP

12шт.

8

87441605

FASTENER

PINETREE CLIP, REMOVABLE

4шт.

9

322072A2

FASTENER

PLASTIC EXPANSION

2шт.

10

227739A2

POWER SOCKET

auxiliary power

2шт.

11

87614460

HEADLINER, DELUXE

1шт.

See Fig. 01-003

1шт.

12

308905A1

CIGARETTE LIGHTER

OUTLET RETAINER

1шт.

13

308904A1

CIGARETTE LIGHTER

POWER OUTLET

1шт.

14

87016620

RIVET,Pop, 1/8" x .462"

8шт.

15

87016559

SELF-TAP SCREW,HWH, M5.5 x 15mm

8шт.

16

86625223

SELF-TAP SCREW,Pan Hd, M4.2 x 25

2шт.

17

104033C2

SELF-TAP SCREW,Truss HD, #10 - 16 x 3/4"

2шт.

18

140017

WASHER,M10 x 20mm OD x 2mm Thk

4шт.
