(04-021[01]) - WALKWAY GROUP, MID - BSN Y8T024627

Запчасти Case IH SPX3320 (04-021[01]) - WALKWAY GROUP, MID - BSN Y8T024627 Suspension & Frame

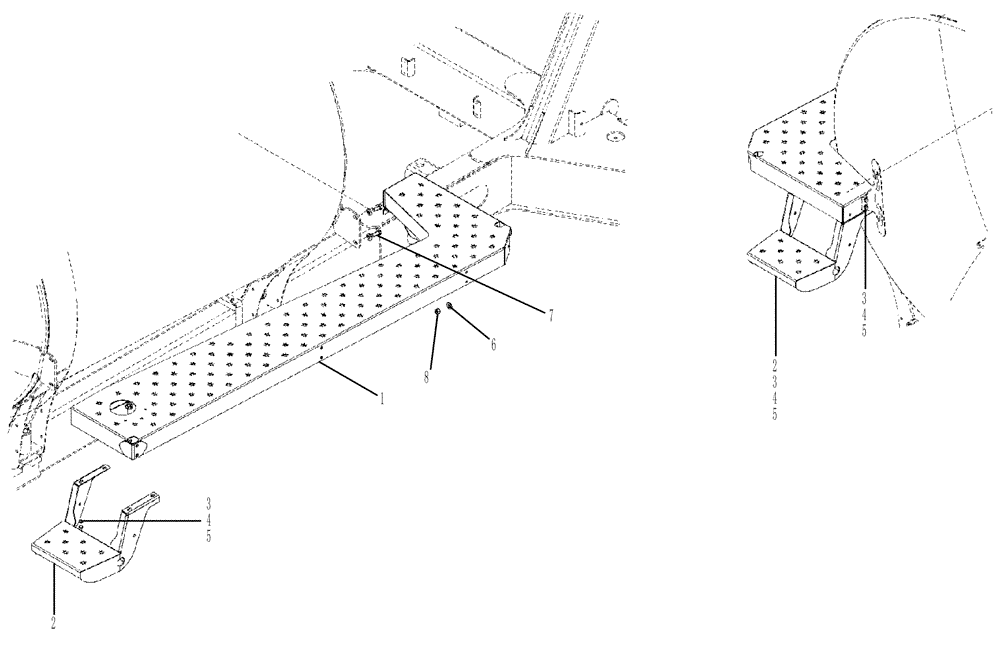

Схема запчастей Case IH SPX3320 - (04-021[01]) - WALKWAY GROUP, MID - BSN Y8T024627 Suspension & Frame
3
6
1
4
8
7
3
3
4
4
5
2
5
2
5
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

87581318

EXTENSION

WALKWAY, MID

1шт.

2

84206008

STEP

WALKWAY

2шт.

3

87529315

WASHER,9mm ID x 17mm OD x 2mm Thk

9 X 17 X 2MM HTS DOR HDN

12шт.

4

86980379

BOLT,Hex, M8 x 1.25 x 20mm, Cl 8.8

10шт.

5

86980514

LOCK NUT,Hex, M8, Cl 8, DOR

10шт.

6

87529310

WASHER,13.5mm ID x 28mm OD x 4mm Thk

13.5 X 28 X 4MM HTS DOR HDN

8шт.

7

86980420

BOLT,Hex, M12 x 1.75 x 30mm, Cl 8.8, Full Thd

4шт.

8

86980516

NUT,Prev Torque, Hex, M12, 1.75 Pitch, Cl 8, DOR

4шт.

Выбрано товаров: 8
