(04-020[02]) - WALKWAY GROUP, HAND AND TOE RAIL, FRONT - Y8T024627 AND AFTER

Запчасти Case IH SPX3320 (04-020[02]) - WALKWAY GROUP, HAND AND TOE RAIL, FRONT - Y8T024627 AND AFTER Suspension & Frame

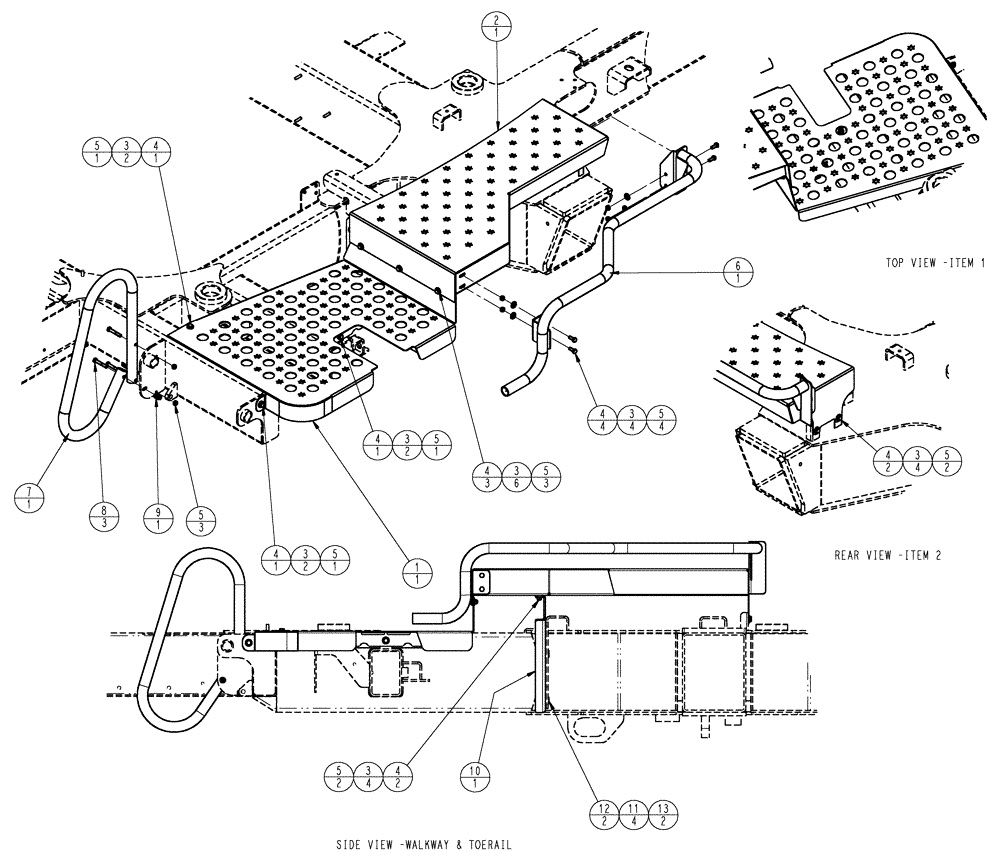

Схема запчастей Case IH SPX3320 - (04-020[02]) - WALKWAY GROUP, HAND AND TOE RAIL, FRONT - Y8T024627 AND AFTER Suspension & Frame
9
4
11
5
4
12
5
4
4
8
5
2
4
6
4
4
3
3
10
3
5
3
3
1
3
5
5
5
3
13
7
5
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

87270661

EXTENSION

Walkway, Lower

1шт.

2

87271187

LOAD DECK

Walkway

1шт.

3

87529316

WASHER,9mm ID x 21mm OD x 2.5mm Thk

24шт.

4

86980379

BOLT,Hex, M8 x 1.25 x 20mm, Cl 8.8

14шт.

5

9991588

NUT,M8 x 1.25, Cl 8

17шт.

6

84127235

RAIL ASSY.

Toe Deck

1шт.

7

84128609

HANDRAIL

Front Ladder

1шт.

8

86980385

BOLT,Hex, M8 x 1.25 x 50mm, Cl 8.8

3шт.

9

87529315

WASHER,9mm ID x 17mm OD x 2mm Thk

9 x 17 x 2 mm, HDN, DOR

1шт.

10

87474251

SUPPORT

Front Walkway

1шт.

11

87529310

WASHER,13.5mm ID x 28mm OD x 4mm Thk

13.5 x 28 x 4 mm, HDN, DOR

4шт.

12

86980422

BOLT,Hex, M12 x 35mm, Cl 8.8

M12-1.75 X 35, HH, 8.8 DOR

2шт.

13

100038

NUT,M12 x 1.75, Cl 8

2шт.
