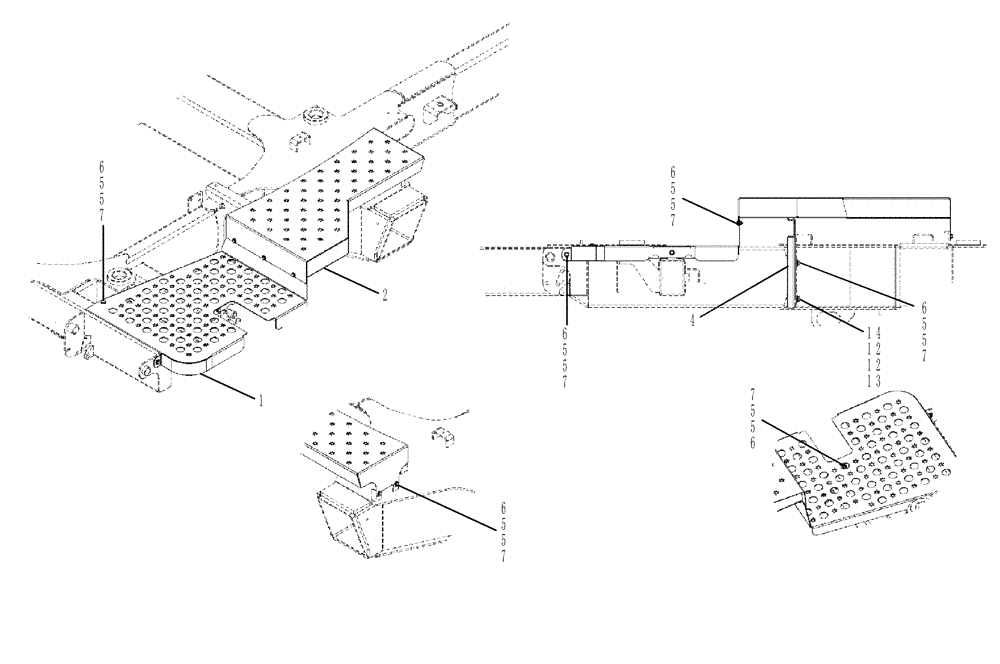

Запчасти Case IH SPX3320 (04-020[01]) - WALKWAY GROUP, FRONT - BSN Y8T024627 Suspension & Frame

1

87270661

EXTENSION

Lower Walkway

1шт.

2

87271187

LOAD DECK

Walkway

1шт.

4

87271010

BRACKET

Front Walkway Mount

1шт.

5

87529316

WASHER,9mm ID x 21mm OD x 2.5mm Thk

20шт.

6

86980379

BOLT,Hex, M8 x 1.25 x 20mm, Cl 8.8

10шт.

7

86980514

LOCK NUT,Hex, M8, Cl 8, DOR

10шт.

12

87529310

WASHER,13.5mm ID x 28mm OD x 4mm Thk

13.5X28X4 HDN DOR

4шт.

13

86980516

NUT,Prev Torque, Hex, M12, 1.75 Pitch, Cl 8, DOR

2шт.

14

86980422

BOLT,Hex, M12 x 35mm, Cl 8.8

M12X35 FULL CL8.8 DOR

2шт.
