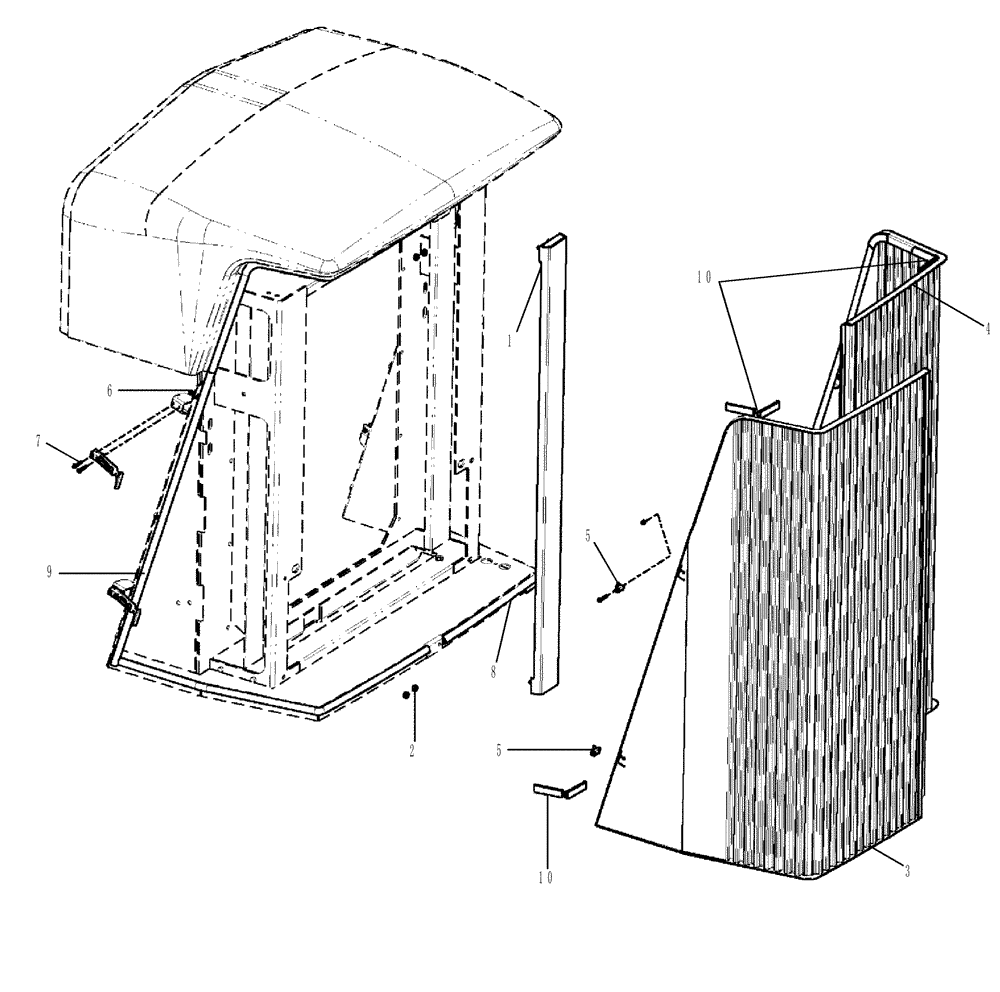

Запчасти Case IH SPX3320 (04-019) - GRILLE GROUP, ENGINE Suspension & Frame

1

87270505

SUPPORT

Grille

1шт.

2

86980514

LOCK NUT,Hex, M8, Cl 8, DOR

4шт.

3

84256222

RADIATOR GRILLE

RH

1шт.

4

84256224

RADIATOR GRILLE

LH

1шт.

5

BN309337

LATCH

Flexible Draw

4шт.

6

87344030

NUT,Prevailing Torque, M5 x 0.8, CL 8, DOR

12шт.

7

87343612

SCREW,Phil Pan Hd, M5 x 30mm, Cl 4.8, Full Thd

M5 X 30 PHD H 4.8

12шт.

8

84233499

WEATHERSTRIP

1/4" x 3/4" x 50' Bulk Roll

2шт.

9

84235227

WEATHERSTRIP

Weatherstrip 1/4" x 3/4" x 41"

2шт.

10

84256559

SEAL

D Seal, Corner

8шт.
