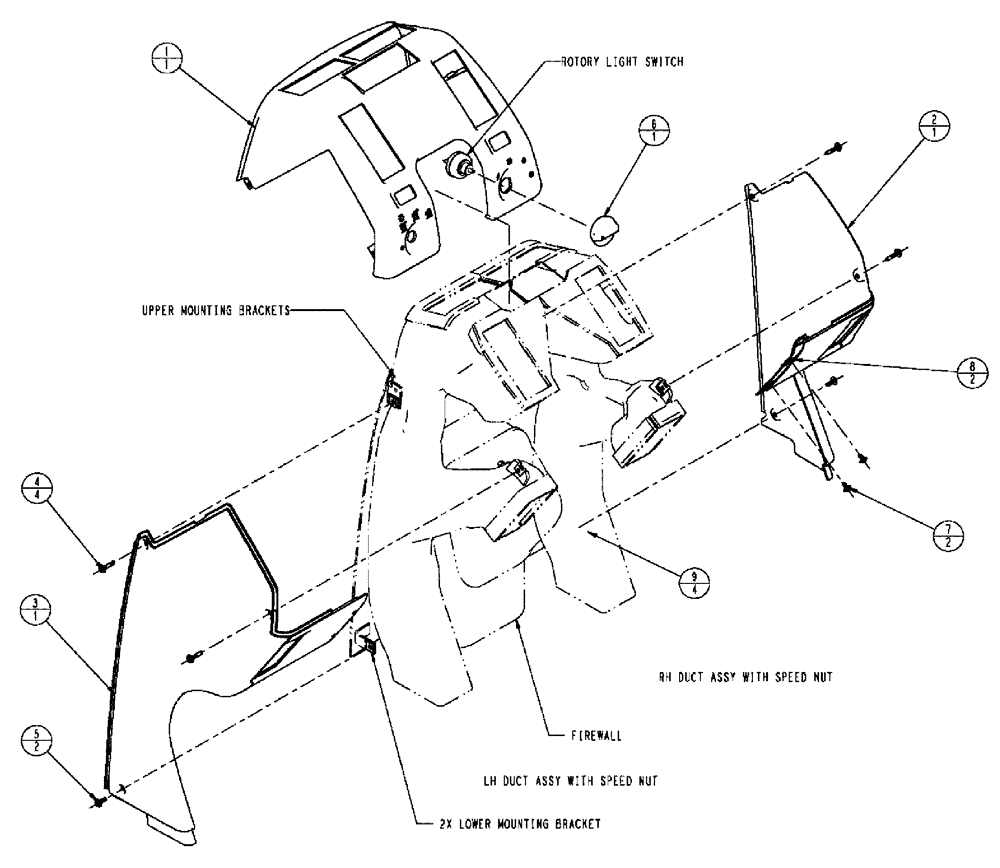

Запчасти Case IH SPX3320 (01-001) - FRONT CONSOLE, PACKAGE Cab Interior

1

87449853

COVER

TOP FRONT CONSOLE

1шт.

2

358671A1

COVER

INSTR PANEL RH

1шт.

3

358670A1

COVER

INSTR PANEL LH

1шт.

4

360362A1

CAPTIVE WASHER SCREW

10-16 x 1 wheat washer

4шт.

5

362394A1

CAPTIVE WASHER SCREW

PHD TYPE 2 #10-1 X .62

2шт.

6

1331046C2

KNOB

Switch Panel

1шт.

7

360363A1

SCREW,Phillips Drive, Round HD, #10 - 16 x 3/8"

PHD TYPE 2 #10-1 X .27

2шт.

8

87016568

SPRING NUT,U, #10-16, Panel type

2шт.

9

87016569

SPRING NUT,U, #10-16, Panel type

4шт.
