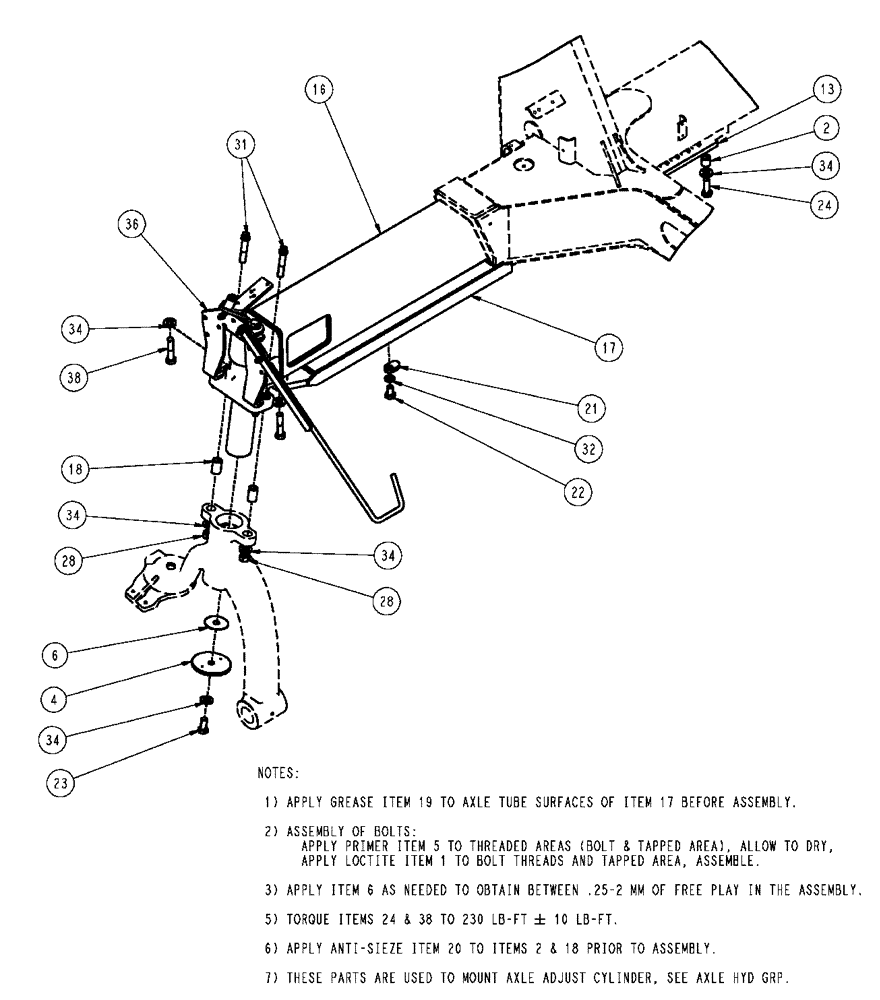

Запчасти Case IH SPX3320 (04-005) - AXLE GROUP, NON STEER, RR Suspension & Frame

2

BN301998

DOWEL

Hollow

1шт.

4

BN302052

WASHER,20.32mm ID x 139.7mm OD

1шт.

6

BN312604

SPACER

SHIM, AXLE

1шт.

13

87540210

SLIDE

Bar, Axle

1шт.

16

87721678

AXLE

Rear

1шт.

17

87268927

SLIDE

axle adjuster, RR

1шт.

18

342939A1

SLEEVE

dowel, hollow

2шт.

21

BN320759

STOP

tab, axle adjust

1шт.

22

627-20035

BOLT,Hex, M20 x 2.5 x 35mm, Cl 10.9, Full Thd

M20-2.5 X 35, HH, 10.9

1шт.

23

86980457

BOLT,Hex, M20 x 40mm, Cl 8.8

M20 2.5 X 40, HH, 8.8, DOR

1шт.

24

87342045

BOLT,Hex, M20 x 2.5 x 55, Class 10.9, DOR

1шт.

28

87024336

NUT,M20 x 2.5, Cl 10

2шт.

31

87268646

BOLT,M20 x 2.5 x 100mm, Cl 12.9

M20-2.5 X 100, 12PT, 12.9, DRL

2шт.

32

892-11020

LOCK WASHER,M20

1шт.

34

87529307

WASHER,22mm ID x 37mm OD x 4mm Thk

22 x 37 x 4 mm, HDN, DOR

6шт.

36

NS

NOT SERVICED

Hose, Non Pivot Group, RR, Start Serial: 22002

1шт.

See Fig. 04-009

1шт.

38

87342001

BOLT,Hex, M20 x 90, Class 10.9, DOR

2шт.
