Запчасти Case IH SPX3320 (04-002) - AXLE GROUP, STEER, RF Suspension & Frame

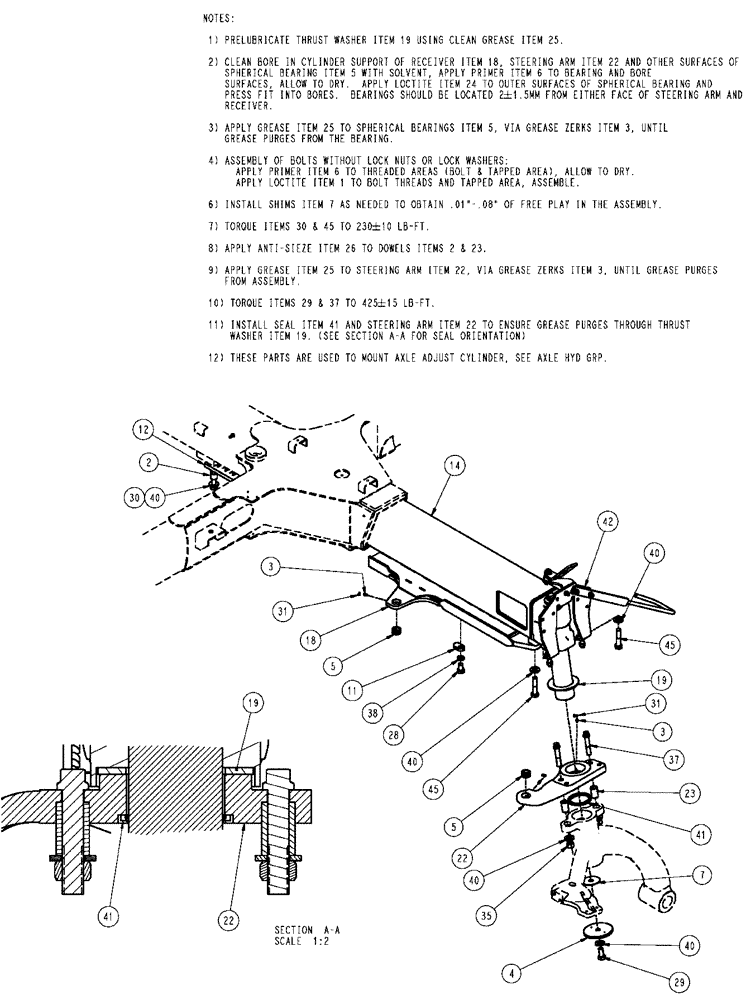

Схема запчастей Case IH SPX3320 - (04-002) - AXLE GROUP, STEER, RF Suspension & Frame
40
40
37
22
3
40
29
45
31
45
2
31
3
35
11
30
4
42
5
19
19
5
40
40
41
12
22
28
41
18
23
14
38
7

Артикул

Название

Примечание

Количество

2

BN301998

DOWEL

Hollow

1шт.

3

BN302051

NIPPLE, LUBE,M8 x 1, Straight

NIPPLE 8 mm x 1 Straight

3шт.

4

BN302052

WASHER,20.32mm ID x 139.7mm OD

1шт.

5

1316827C1

BUSHING,25.4mm ID x 41.27mm OD x 22.23mm W

Self-Aligning 41.26 x 25.4 x 22.25

2шт.

7

BN312604

SPACER

SHIM, AXLE

1шт.

11

BN320759

STOP

tab, axle adjust

1шт.

12

87540210

SLIDE

Bar, Axle

1шт.

14

87721676

AXLE

Front

1шт.

18

87265738

SLIDE

axle adjustment, RF

1шт.

19

86986933

THRUST WASHER,95mm ID x 149mm OD x 6.26mm Thk

1шт.

22

86986935

STEERING ARM

Steering, RH

1шт.

23

342939A1

SLEEVE

dowel, hollow

2шт.

28

87635862

BOLT,Hex, M20 x 35mm, Cl 10.9

Hex, M20 x 35, Full Thrd, 10.9 DOR

1шт.

29

87342019

BOLT,Hex, M20 x 2.5 x 40mm, Class 10.9, Full Thd, DOR

1шт.

30

87342045

BOLT,Hex, M20 x 2.5 x 55, Class 10.9, DOR

1шт.

31

BN69951

CAP

Grease

3шт.

35

87024336

NUT,M20 x 2.5, Cl 10

2шт.

37

87268646

BOLT,M20 x 2.5 x 100mm, Cl 12.9

M20-2.5 X 100, 12PT, 12.9, DRL

2шт.

38

892-11020

LOCK WASHER,M20

1шт.

40

87529307

WASHER,22mm ID x 37mm OD x 4mm Thk

22 x 37 x 4 mm, HDN, DOR

6шт.

41

343883A1

SEAL,90mm ID x 110mm OD x 8mm Thk

1шт.

42

NS

NOT SERVICED

Hose Pivot Group, RF

1шт.

See Fig. 04-007

1шт.

45

87342001

BOLT,Hex, M20 x 90, Class 10.9, DOR

2шт.

Выбрано товаров: 24
