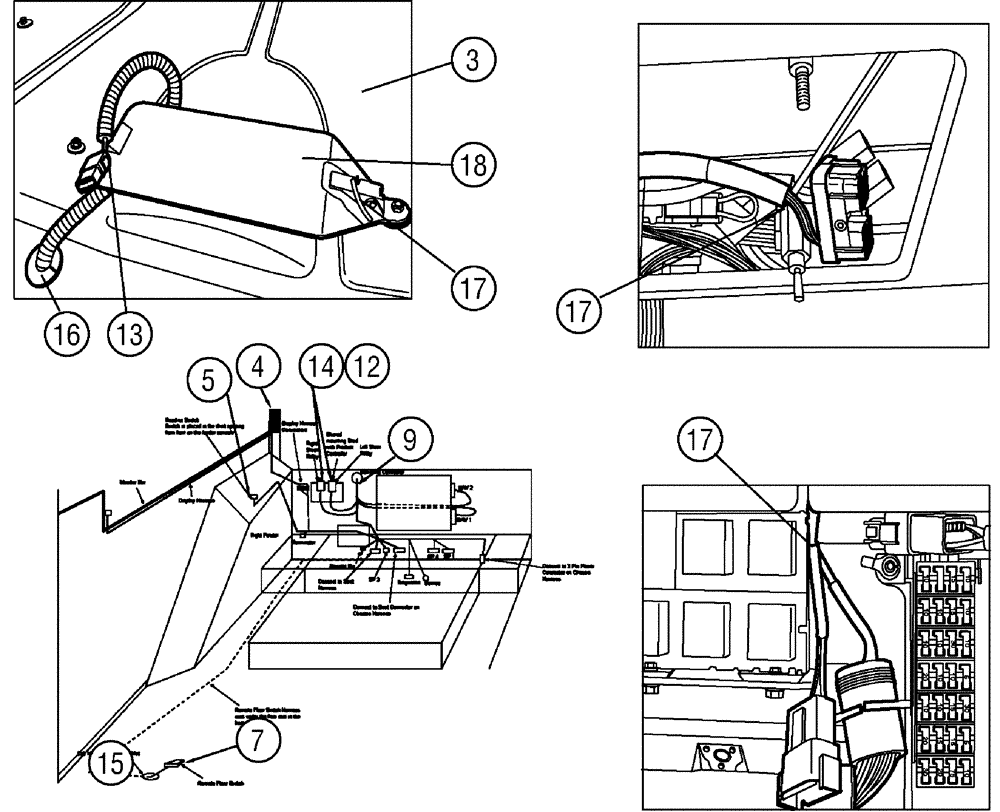

Запчасти Case IH SPX3320 (11-074) - ACCUGUIDE ELECTRIC GROUP, CAB Options

3

87537747

INSTRUCTION

UPPER ROOF NAO, (REWORK FOR AUTOGUIDANCE)

1шт.

4

87542375

TRIM PANEL

RH C-Post

1шт.

7

87646096

SWITCH ASSY

Remote, With Pigtail Connector (auto guidance end of row engage)

1шт.

8

87646099

FASTENER

dual lock

2шт.

9

87648173

HARNESS

CCH Spray Cab Inside Autoguidance

1шт.

12

9804276

FLANGE NUT,Hex, M6 x 1, Cl 8

2шт.

13

87544759

HARNESS

GPS Antenna Receiver

1шт.

14

87529315

WASHER,9mm ID x 17mm OD x 2mm Thk

9 x 17 x 2 mm, HDN, DOR

2шт.

15

87649885

PLUG

Floor, Autoguidance

1шт.

16

87330628

GROMMET

.750 ID X 1.625 GRV CA DIAG SPLT

1шт.

17

435437A1

CABLE TIE,3/16" x 7 1/4"

CABLE STRAP

3шт.

18

87552885

BRACKET

Assembly, Autoguidance

1шт.

19

278316A2

CLIP

retainer

2шт.
