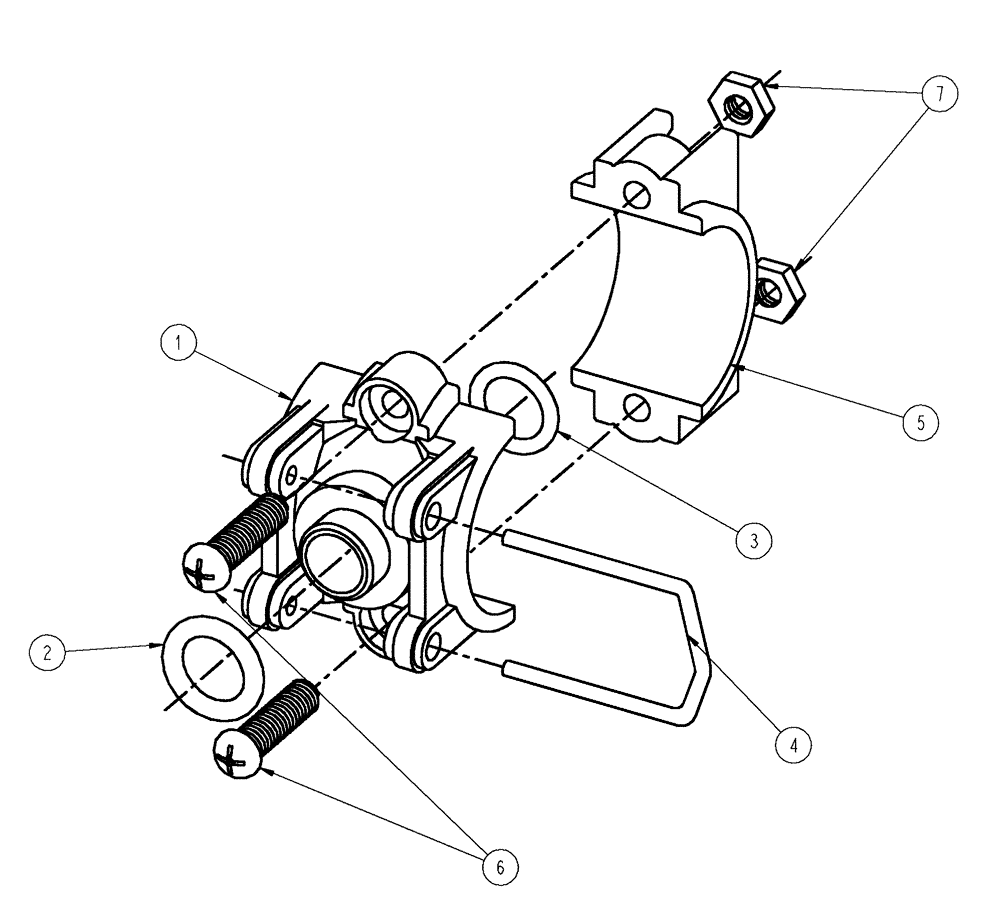

Запчасти Case IH SPX3320 (11-060) - NOZZLE WILGER, SADDLE Options

1

84153118

BODY,1" Pipe , 3/8" Inlet

saddle, 3/8" inlet

1шт.

2

84153115

O-RING,0.484" ID x 0.139" Width

#206 Class 5

1шт.

3

236535

O-RING,0.103" Thk x 0.362" ID, -110, Cl 6, 90 Duro

1шт.

4

84153117

LOCK,U-Clip 302SS

u-clip

1шт.

5

84153119

BODY,1" Pipe

SADDLE BACKSTRAP

1шт.

6

87682408

SCREW,Pan, #10 - 24 x 7/8"

#10-24 x 7/8 SS

2шт.

7

84542360

NUT

10-24, NLN, Stainless Steel

2шт.
