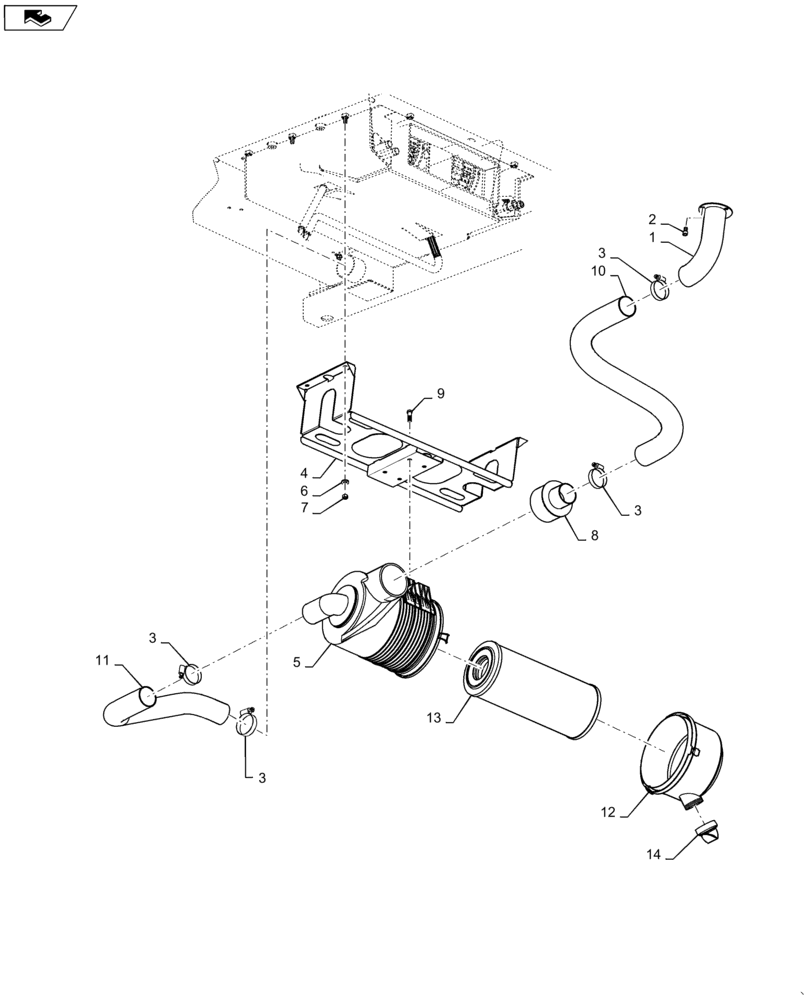

Запчасти Case IH SPX3320 (02-013) - AIR INTAKE SYSTEM, CAB Cab Exterior

1

87529319

TUBE

AIR OUTLET

1шт.

2

864-8012

HEX SOC SCREW,M8 x 12mm, Cl 8.8

3шт.

3

214-1540

HOSE CLAMP,#40, 2.06" - 3", Type F Worm, W/ Liner

4шт.

4

87271699

MOUNTING PLATE

CAB AIR FILTER

1шт.

5

87272119

HOUSING

AIR FILTER

1шт.

5a

9809800

DUST VALVE,1.93" ID x 2.24" OD

1шт.

5b

87033504

COVER ASSY

1шт.

6

87529315

WASHER,9mm ID x 17mm OD x 2mm Thk

4шт.

7

9991588

NUT,M8 x 1.25, Cl 8

4шт.

8

87272118

AIR INTAKE TUBE

1шт.

9

86981479

BOLT,Hex, M8 x 16mm, Cl 8.8

HVY FLANGE, M8 X 16 FU

4шт.

10

87268901

HOSE

Poly, Bulk

1шт.

Cut 39.36" from bulk roll

1шт.

11

87268901

HOSE

Poly, Bulk

1шт.

Cut 35.4" from bulk roll

1шт.

12

BN315870

SEALANT

11OZ, BLACK, G-FLEX

1шт.

13

87267363

AIR FILTER,Cab Charcoal Recirculation

Cab, Activated Charcoal

1шт.

14

9809800

DUST VALVE,1.93" ID x 2.24" OD

1шт.

87267364

DECAL

Cab Filter Service

1шт.

Associated Part of Filter, Cab, Charcoal, Radia, P/N 87267363

1шт.
