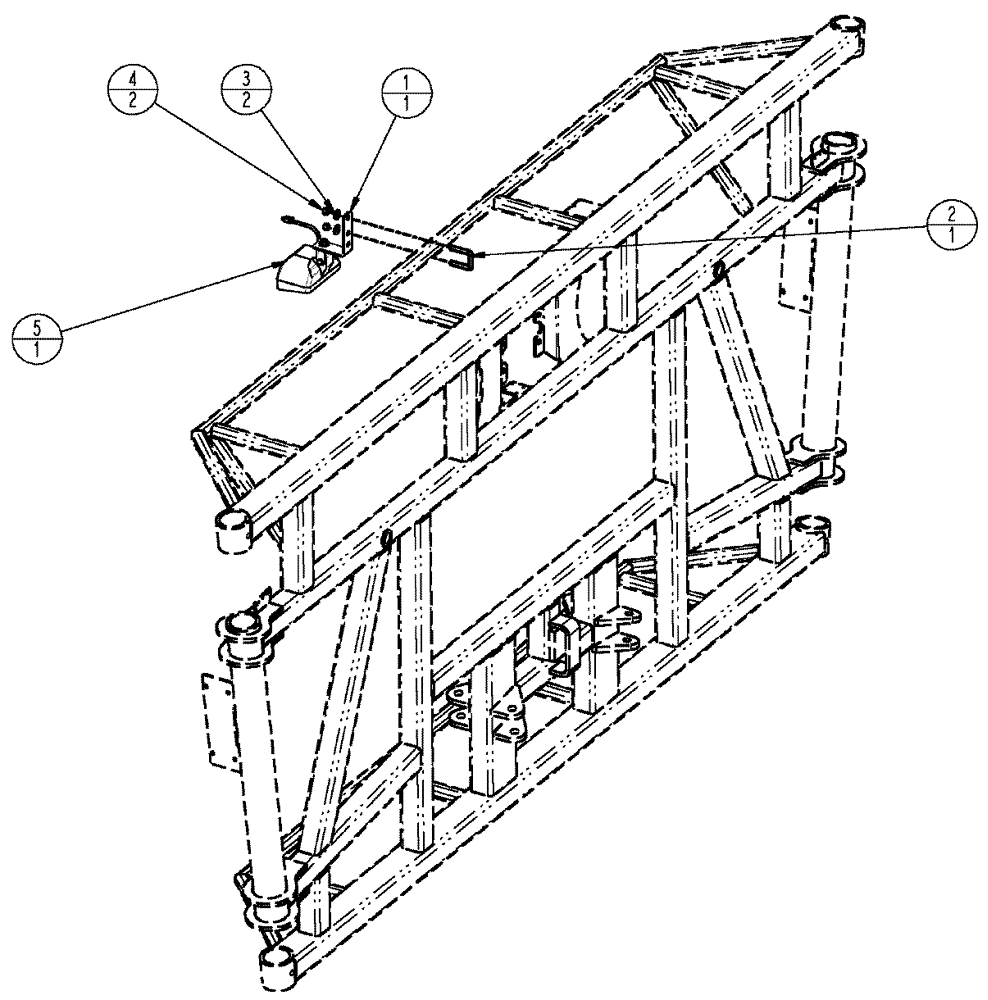

Запчасти Case IH SPX3320 (11-055) - LIGHT GROUP, CENTER SECTION Options

1

87658595

MOUNTING PLATE

Boom Light, Rear

1шт.

2

BN319918

U-BOLT,SQ BND 1.31" ID x 3/8"

BOLT "U" Square Bend 3/8"-16 x 1.31 wide x 2.00 Deep

1шт.

3

87529312

WASHER,11mm ID x 24mm OD x 3mm Thk

2шт.

4

87343974

NUT,Prev Torque, 3/8" - 16, Gr C, DOR

2шт.

5

87658615

LAMP

Flood, Assembly

1шт.

See Fig. 11-056

1шт.

6

87658598

WIRE HARNESS

Lights, Center Section

1шт.
