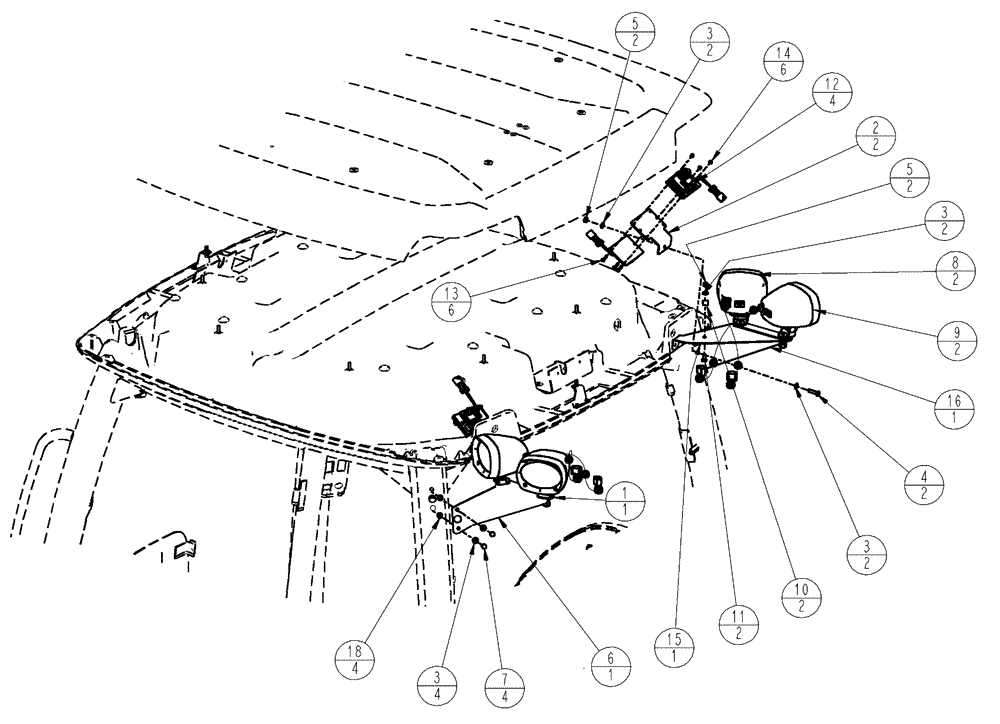

Запчасти Case IH SPX3320 (11-054) - LIGHT GROUP, HID, CAB Options

1

87658597

MOUNTING PLATE

HID Light, LH

1шт.

2

87664088

MOUNTING PLATE

Ballast

2шт.

3

87529315

WASHER,9mm ID x 17mm OD x 2mm Thk

9 x 17 x 2 mm, HDN, DOR

10шт.

4

86980381

BOLT,Hex, M8 x 1.25 x 30mm, Cl 8.8

2шт.

5

9991588

NUT,M8 x 1.25, Cl 8

4шт.

6

87658596

BRACKET, SUPPORTING

HID Light, LH

1шт.

7

86980379

BOLT,Hex, M8 x 1.25 x 20mm, Cl 8.8

4шт.

8

87475205

LAMP,HID, 12V, 35W, Clear

REAR HID FLOOD

2шт.

9

87475202

LAMP

REAR HID TRAP

2шт.

10

86625036

CLAMP,12.7mm, Coat, 8.7mm Bolt Hole, P Type

2шт.

11

86980378

BOLT,Hex, M8 x 1.25 x 16mm, Cl 8.8, Full Thd

2шт.

12

87475204

BALLAST

REAR HID LIGHT

4шт.

12

87475204R

REMAN ELECT CONTROL

SPX3320 PATRIOT SPRAYER, REAR HID LIGHT (11/06-4/09)

4шт.

12

87475204C

CORE-ELECTRONIC CONT

Return Number

4шт.

13

87343602

SCREW,Phil Pan Hd, M5 x 20mm, Cl 4.8, Full Thd

Hex, M5 x 20 PHD Full Thrd 4.8 DOR

6шт.

14

87344030

NUT,Prevailing Torque, M5 x 0.8, CL 8, DOR

6шт.

15

87658602

SUPPORT

HID Light, RH

1шт.

16

87658601

BRACKET, SUPPORTING

HID Light, RH

1шт.

17

87756562

WIRE HARNESS

Cab HID

2шт.

18

P35448

RIVET

M8 LONG

4шт.

19

435437A1

CABLE TIE,3/16" x 7 1/4"

CABLE STRAP

6шт.
