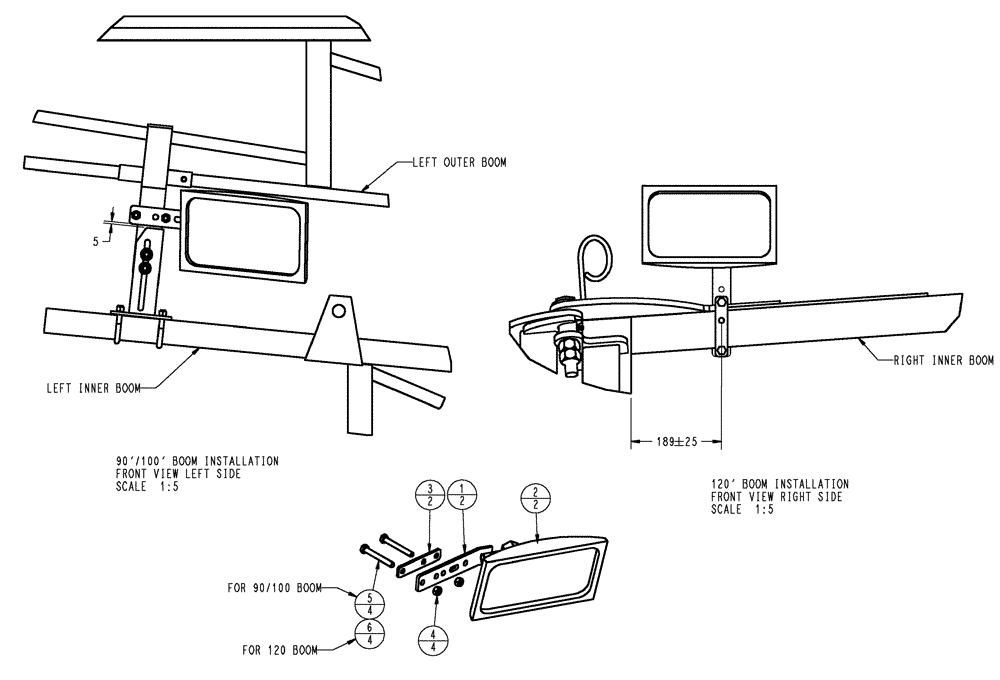

Запчасти Case IH SPX3320 (11-048) - MIRROR GROUP, BOOM Options

1

84161902

MOUNT

MIRROR, Start Year: 01-OCT-08

2шт.

2

87268397

MIRROR

Head, R450 mm

2шт.

3

84161898

MOUNTING PLATE

2шт.

4

86980515

NUT,Hex, M10 x 1.5, Cl 8.8, DOR

4шт.

5

86980408

BOLT,Hex, M10 x 1.5 x 80mm, Cl 8.8

4шт.

6

86980410

BOLT,Hex, M10 x 100mm, Cl 8.8

M10 1.5 X 100, 8.8, DOR

4шт.
