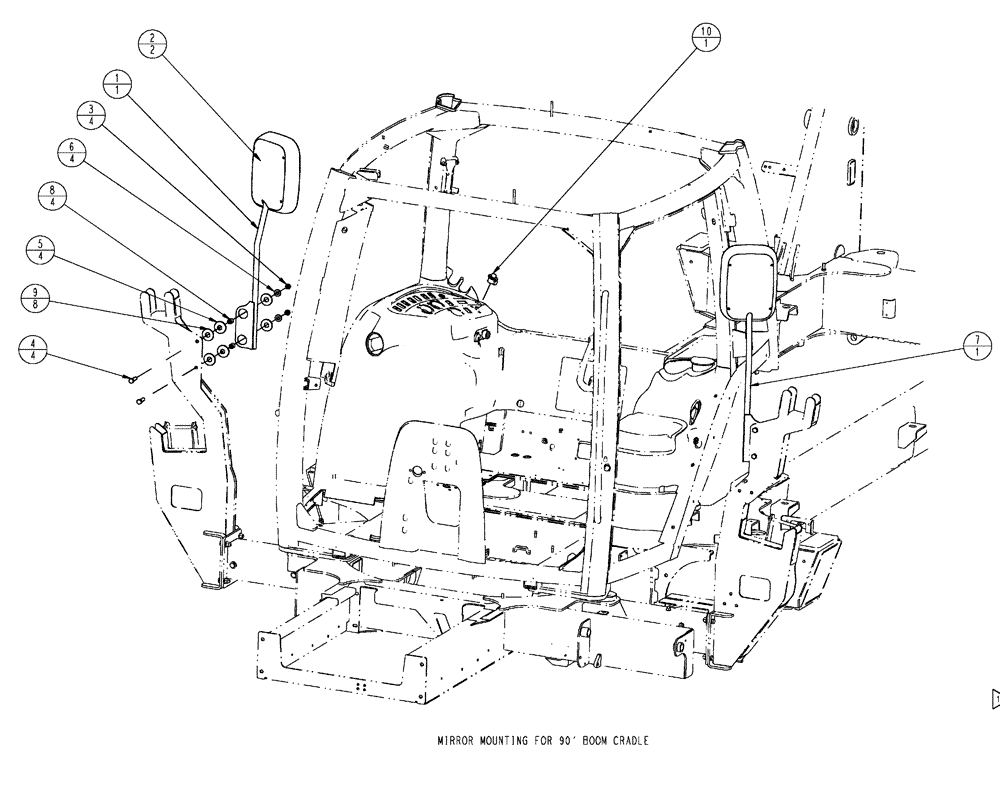

Запчасти Case IH SPX3320 (11-047) - ELECTRIC MIRROR Options

1

84241580

MOUNT

Mirror, RH, Start Serial: YAT028019

1шт.

84136659

MOUNT

MIRROR, RH, Start Year: 01-SEP-08, Serial Range: -YAT028018

1шт.

87613139

MIRROR, RH, Years: -01-SEP-08

1шт.

Indicates Old Part Number or Can Order Newer Part Number Listed above

1шт.

2

87363066

MIRROR,238mm x 328mm

HEAD, ELECTRICAL, Start Year: 01-SEP-08

2шт.

Mount Goes Inside Mirror Head

1шт.

360580A1

MIRROR,238mm x 328mm

HEAD, ELECTRICAL, Years: -01-SEP-08

2шт.

Mount Attaches With A Thumbwheel On Mirror Head

1шт.

3

100038

NUT,M12 x 1.75, Cl 8

4шт.

4

86980423

BOLT,Hex, M12 x 1.75 x 40mm, Cl 8.8, Full Thd

4шт.

5

BN320147

GROMMET

2 X 3/4 X 7/16

4шт.

6

87529310

WASHER,13.5mm ID x 28mm OD x 4mm Thk

13.5 x 28 x 4 mm, HDN, DOR

4шт.

7

84241578

MOUNT

Mirror, LH, Start Serial: YAT028019

1шт.

84136660

MOUNT

MIRROR, LH, Start Year: 01-SEP-08, Serial Range: -YAT028018

1шт.

87613137

MIRROR, LH, Years: -01-SEP-08

1шт.

Indicates Old Part Number or Can Order Newer Part Number Listed above

1шт.

8

BN320164

BUSHING

MIRROR, BRACKET

4шт.

9

BN320165

WASHER

MIRROR, BRACKET

8шт.

10

280627A1

SWITCH, MIRROR ADJUS

power

1шт.

11

87272132

WIRE HARNESS

Mirror, LH/RH

1шт.
