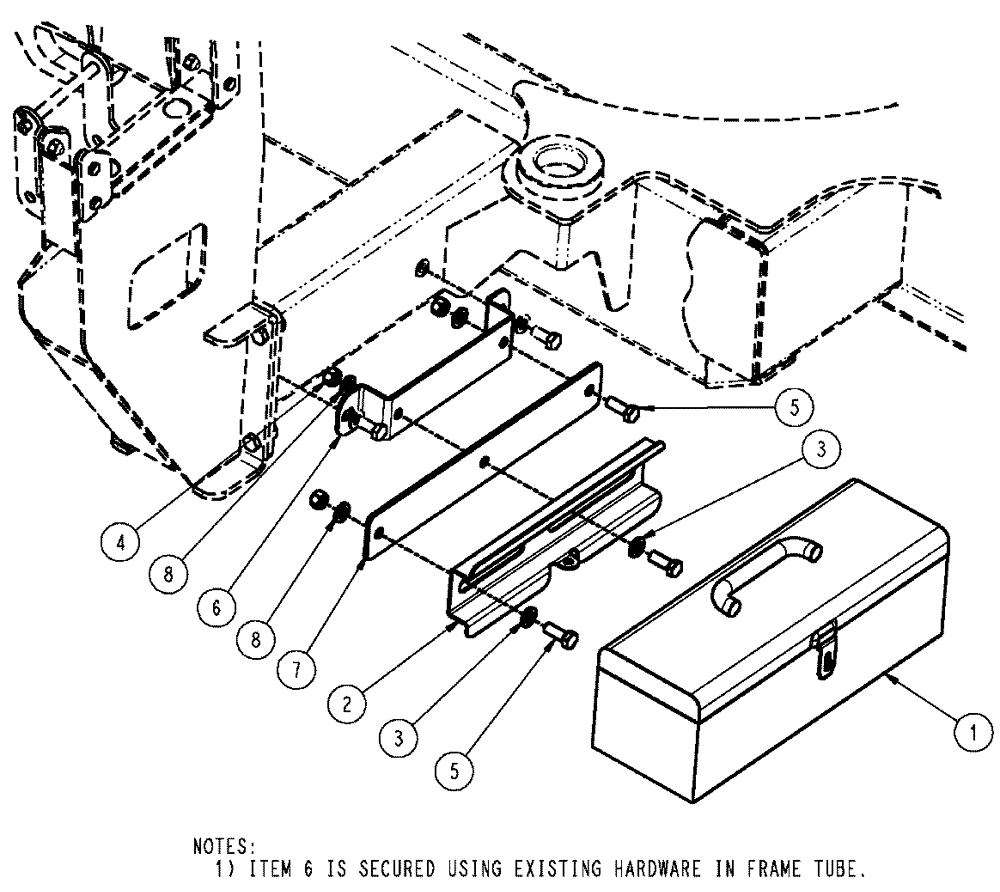

Запчасти Case IH SPX3320 (11-045) - TOOL BOX, PORTABLE Options

1

A181436

TOOL BOX

Steel

1шт.

2

A181434

SUPPORT

Mount, Toolbox

1шт.

3

87528989

WASHER,12.2mm ID x 30mm OD x 2.5mm Thk

M12 x 30 x 2.5 DOR

2шт.

4

100038

NUT,M12 x 1.75, Cl 8

5шт.

5

86980420

BOLT,Hex, M12 x 1.75 x 30mm, Cl 8.8, Full Thd

3шт.

6

87267627

BRACKET, SUPPORTING

1шт.

7

87272805

BRACKET, SUPPORTING

1шт.

8

86981496

WASHER,13.3mm ID x 24.5mm OD x 3mm Thk

3шт.
