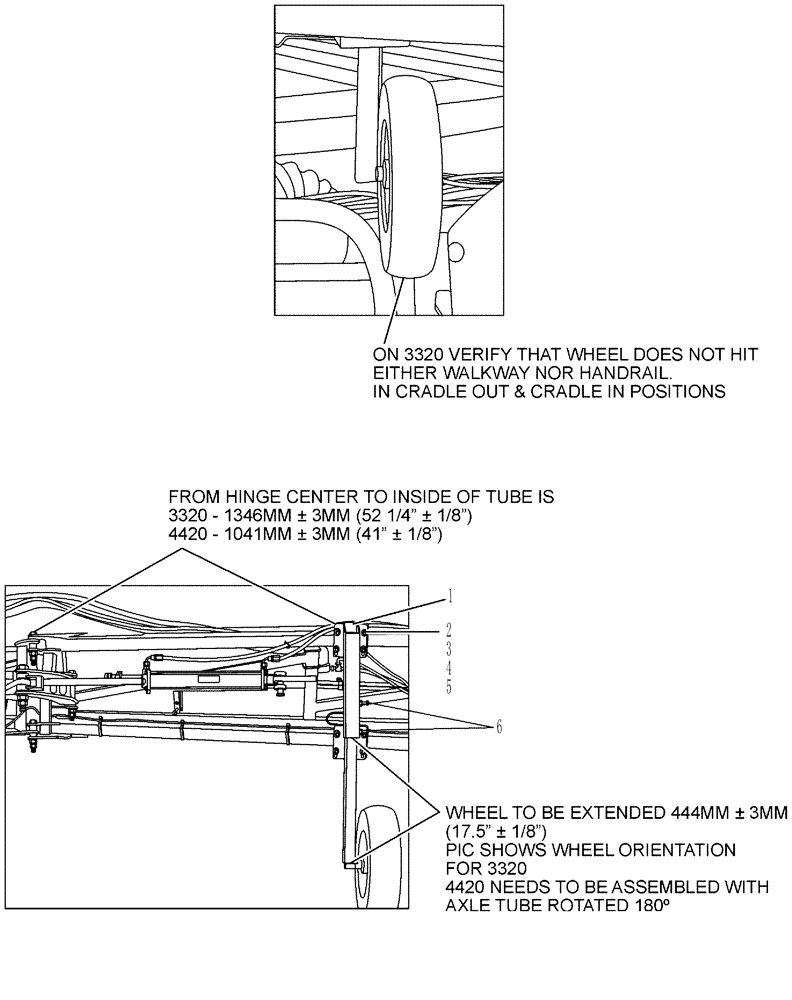

Запчасти Case IH SPX3320 (11-042) - AUTOBOOM, 120’, WHEEL Options

1

87629616

KIT

Autoboom, Wheels 120'

1шт.

See Fig. 11-043

1шт.

2

BN308039

PLATE

Spacer

8шт.

3

86980409

BOLT,Hex, M10 x 1.5 x 90mm, Cl 8.8

16шт.

4

87529312

WASHER,11mm ID x 24mm OD x 3mm Thk

16шт.

5

86980515

NUT,Hex, M10 x 1.5, Cl 8.8, DOR

16шт.

6

87310191

BOLT,1/2"-13 x 1-1/2", G5, DOR

4шт.
