Запчасти Case IH SPX3320 (11-037) - AUTOBOOM, HEIGHT CONTROL Options

1

87718973

SERVICE MANUAL

Autoboom, Case IH (Not Shown)

1шт.

2

87710685

SENSOR

Ultrasonic, Right (Not Shown)

1шт.

See Fig. 11-040

1шт.

3

87710686

SENSOR

Ultrasonic, Left (Not Shown)

1шт.

See Fig. 11-040

1шт.

4

87718266

MOUNTING PLATE

Hydraulic Block, CAN, Autoboom (Not Shown)

1шт.

5

87718974

SERVICE MANUAL

CAN, Autoboom Calibration (Not Shown)

1шт.

6

84180940

WIRE HARNESS

60' Extension, Ultraglide Sensor (Not Shown)

2шт.

7

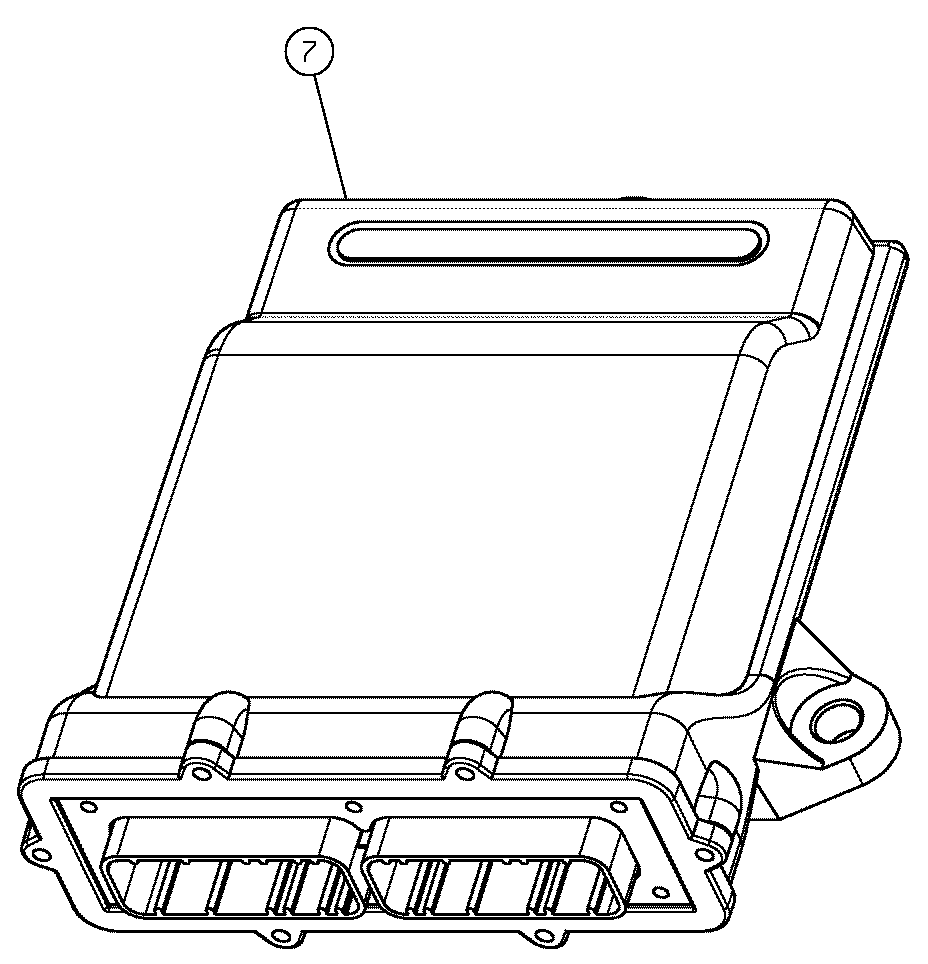

87717349

MODULE

Node, CAN, Autoboom

1шт.

87717349R

REMAN-MODULE

SPX3320 - PATRIOT SPRAYER - 11/06-4/09

1шт.

87717349C

CORE-MODULE

Return Number

1шт.

8

87718983

CABLE

20', CAN, Ultraglide Command (Not Shown)

1шт.

9

87717363

HYDRAULIC VALVE

Ultraglide (Not Shown)

1шт.

See Fig. 11-039

1шт.
