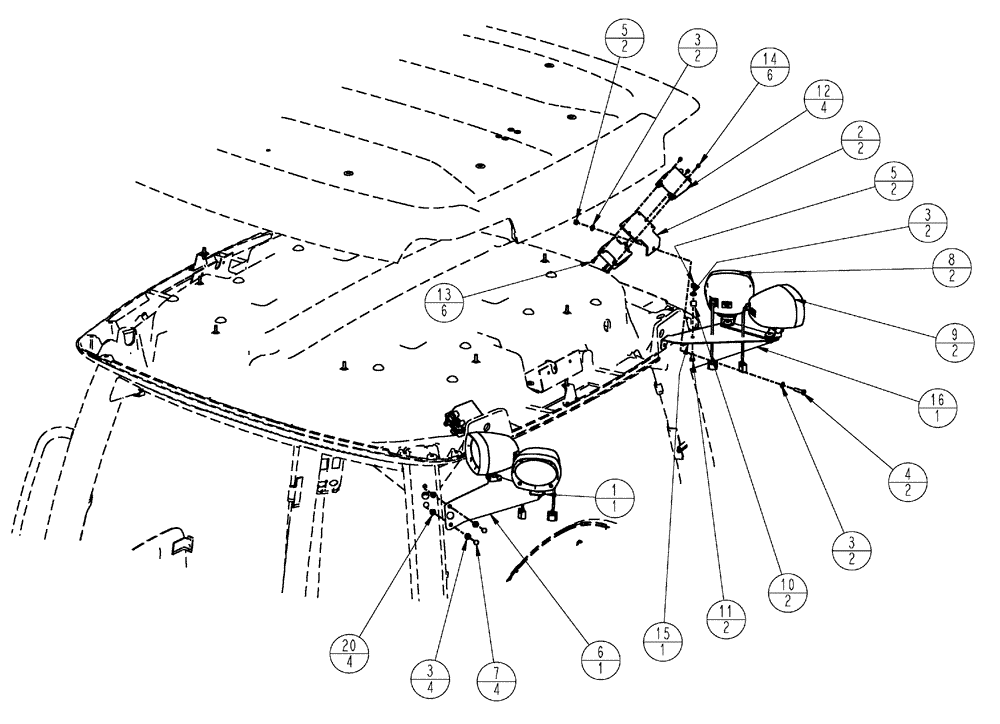

Запчасти Case IH SPX3320 (02-011) - HID LIGHT GROUP, CAB Cab Exterior

1

87658597

MOUNTING PLATE

HID Light, LH

1шт.

2

87664088

MOUNTING PLATE

Ballast

2шт.

3

87529315

WASHER,9mm ID x 17mm OD x 2mm Thk

9 x 17 x 2 mm, HDN, DOR

10шт.

4

86980381

BOLT,Hex, M8 x 1.25 x 30mm, Cl 8.8

2шт.

5

9991588

NUT,M8 x 1.25, Cl 8

4шт.

6

87658596

BRACKET, SUPPORTING

HID Light, LH

1шт.

7

86980379

BOLT,Hex, M8 x 1.25 x 20mm, Cl 8.8

4шт.

8

87419587

LAMP

REAR HID FLOOD

2шт.

9

87419591

LAMP

REAR HID TRAP

2шт.

10

86625036

CLAMP,12.7mm, Coat, 8.7mm Bolt Hole, P Type

2шт.

11

86980378

BOLT,Hex, M8 x 1.25 x 16mm, Cl 8.8, Full Thd

2шт.

12

447742A1

BALLAST

REAR HID LIGHT

4шт.

13

87343602

SCREW,Phil Pan Hd, M5 x 20mm, Cl 4.8, Full Thd

Hex, M5 x 20 PHD Full Thrd 4.8 DOR

6шт.

14

87344030

NUT,Prevailing Torque, M5 x 0.8, CL 8, DOR

6шт.

15

87658602

SUPPORT

HID Light, RH

1шт.

16

87658601

BRACKET, SUPPORTING

HID Light, RH

1шт.

17

87756562

WIRE HARNESS

CAB HID

2шт.

18

87664097

1/4" X 30"

4шт.

19

435437A1

CABLE TIE,3/16" x 7 1/4"

CABLE STRAP

6шт.

20

P35448

RIVET

NUT

4шт.
