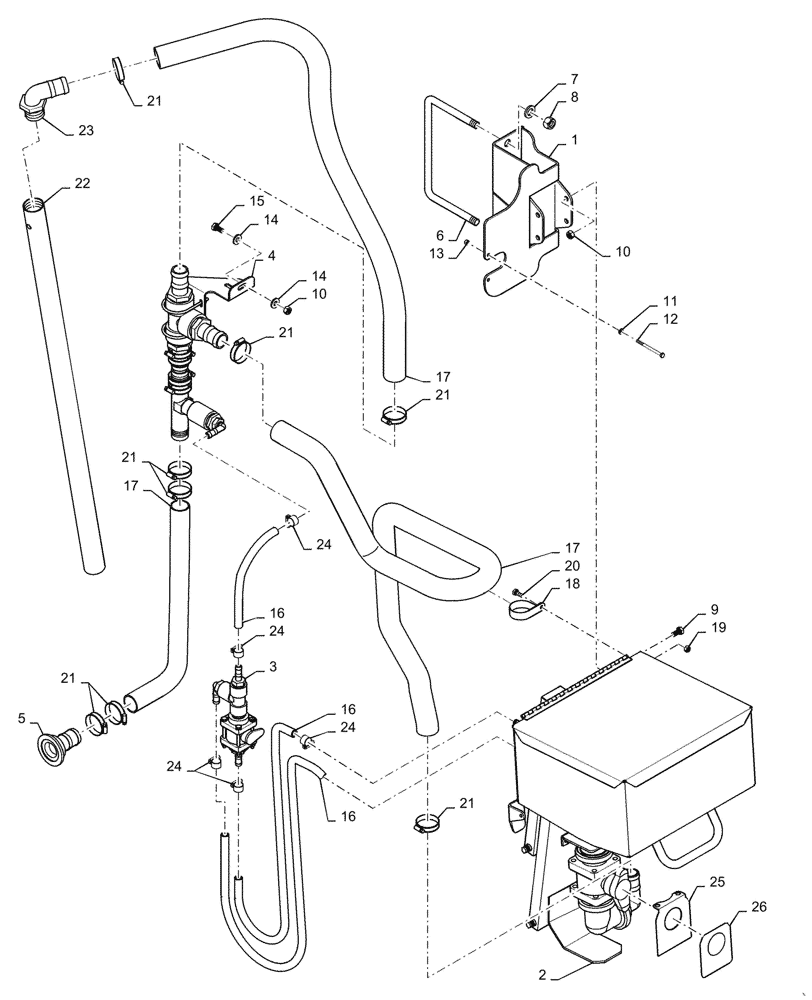

Запчасти Case IH SPX3320 (11-030) - CHEMICAL INDUCTOR GROUP Options

1

87271073

MOUNTING PLATE

EDUCTOR

1шт.

2

BN324763

TANK

W/LINKAGE CHEM, SEE FIG. 11-031

1шт.

3

87271077

SEE FIG. 11-035

1шт.

4

BN324807

SERVICE KIT

CHEM IND, SEE FIG. 11-033

1шт.

5

434039A1

FITTING,2" Flange x 1-1/2" Hose Barb

2" Manifold x 1-1/2" Hose Barb, Poly

1шт.

6

BN325918

U-BOLT

U, M16, 187 x 256

1шт.

7

87529306

WASHER,17.5mm ID x 30mm OD x 4mm Thk

17.5 x 30 x 4 mm, HDN, DOR

2шт.

8

86980517

NUT,Hex, M16 - 2, Cl 8.8, DOR

2шт.

9

86980399

BOLT,Hex, M10 x 1.5 x 20mm, Cl 8.8, Full Thd

M10-1.5 X 20, HH, 8.8, DOR

4шт.

10

86980515

NUT,Hex, M10 x 1.5, Cl 8.8, DOR

5шт.

11

87529314

WASHER,6.6mm ID x 12.5mm OD x 2mm Thk

6.6 x 12.5 x 2 mm, HDN, DOR

2шт.

12

86980369

BOLT,Hex, M6 x 80, Cl 8.8

M6 1 x 80, HH, 8.8, DOR

2шт.

13

353308

NUT,M6 x 1.0, Cl 8

2шт.

14

87529312

WASHER,11mm ID x 24mm OD x 3mm Thk

2шт.

15

86980400

BOLT,Hex, M10 x 25mm, Cl 8.8, Full Thd

1шт.

16

BN54239

HOSE,12.7mm ID x 3048mm L

Bulk - 1/2 EPDM, Discharge

1шт.

17

BN309785

HOSE

Kanaflex 390SD, 1 1/2" x 13.8'

1шт.

18

515-23508

CLAMP,2", Insul, 3/8" Bolt

1шт.

19

9991588

NUT,M8 x 1.25, Cl 8

1шт.

20

86980379

BOLT,Hex, M8 x 1.25 x 20mm, Cl 8.8

1шт.

21

BN310448

HOSE CLAMP

#28, Stainless Steel

8шт.

22

87272361

PLASTIC-RUBBER TUBE,38 mm ID x 48 mm OD x 1450 mm L

CHEM DROP, POLY

1шт.

23

BN73723

ELBOW,90 Degree Elbow, 1-1/2" Male NPT x 1-1/2" Hose Barb, Poly

1-1/2" NPT x 1-1/2" Hose Barb, Poly

1шт.

24

BN75906

CLAMP

3/8" - 1/2" SST

6шт.

25

BN320997

BRACKET

Decal Mount SST

1шт.

26

343187A1

DECAL

Chemical Inductor 778D

1шт.
