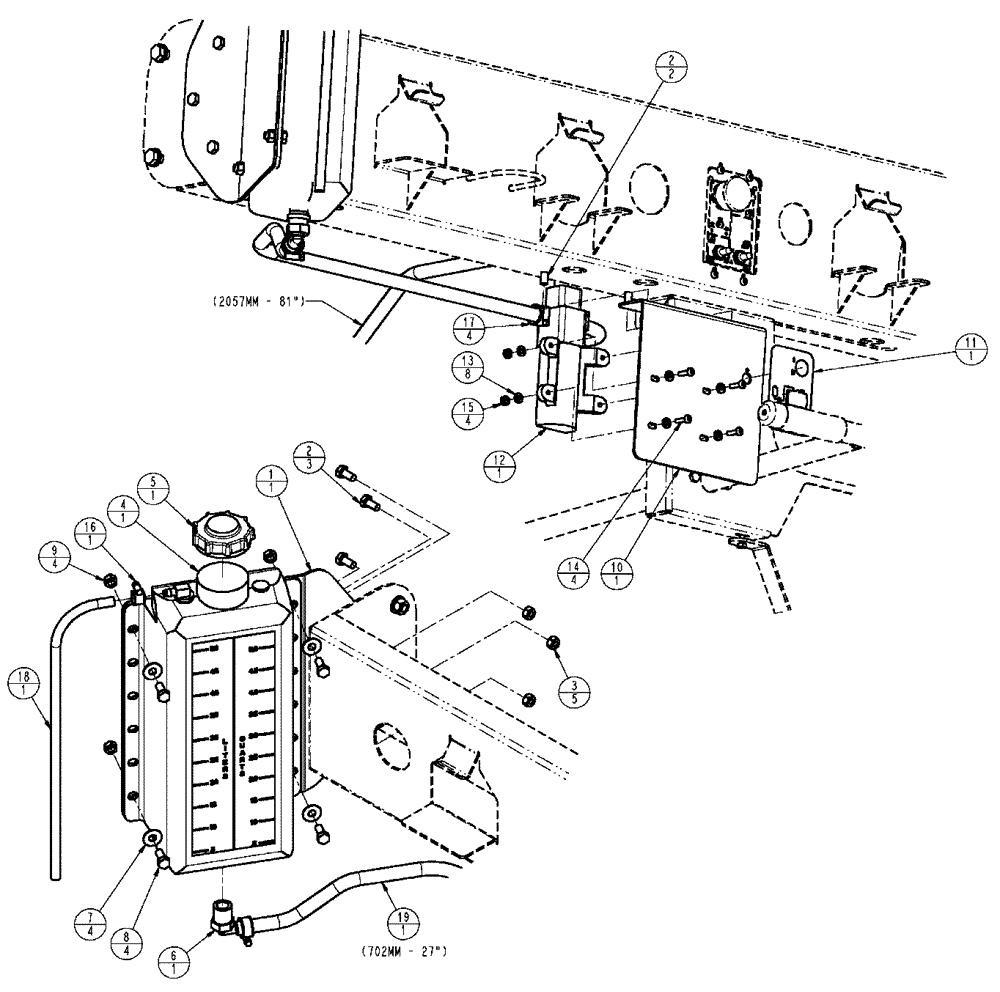

Запчасти Case IH SPX3320 (11-020) - FOAMER, TRANSFER PUMP GROUP Options

1

87588656

BASE PLATE

CONCENTRATE, TANK

1шт.

2

86980378

BOLT,Hex, M8 x 1.25 x 16mm, Cl 8.8, Full Thd

5шт.

3

9991588

NUT,M8 x 1.25, Cl 8

5шт.

4

BN322944

TANK

POLY, NATURAL

1шт.

5

1547924C1

CAP

coolant recovery bottle

1шт.

6

BN325981

ELBOW

1/2" MPT x 3/8" Hose Barb, Poly

1шт.

7

BN50142

WASHER,5/16", Stainless Steel

4шт.

8

BN50476

BOLT,5/16"-18 x 0.75", Stainless

4шт.

9

BN55361

NUT,5/16"-18, Nylon, Stainless

4шт.

10

87588655

BASE PLATE

TRANSFER AND SWITCH

1шт.

11

87271976

DECAL

Transfer Pump

1шт.

84165800

DECAL

TRANSFER PUMP (RUSSIAN)

1шт.

12

87727677

PUMP,12V

Diaphragm, 1 GPM, 12V, Foam Transfer

1шт.

13

BN310265

WASHER

10, Stainless Steel

8шт.

14

BN311631

BOLT,#10 - 24 x 3/4", SST

10-24 x .75, BSH, Stainless Steel

4шт.

15

BN310266

BHD LOCK NUT,#10-24, Nylon, Stainless Steel

4шт.

16

BN310450

HOSE CLAMP

#3, Stainless Steel

1шт.

17

BN324022

HOSE CLAMP

#8, Stainless Steel

4шт.

18

BN72041

HOSE

1/4" Bulk EPDM Discharge

1шт.

19

BN75913

TUBE

3/8 EVA

9шт.
