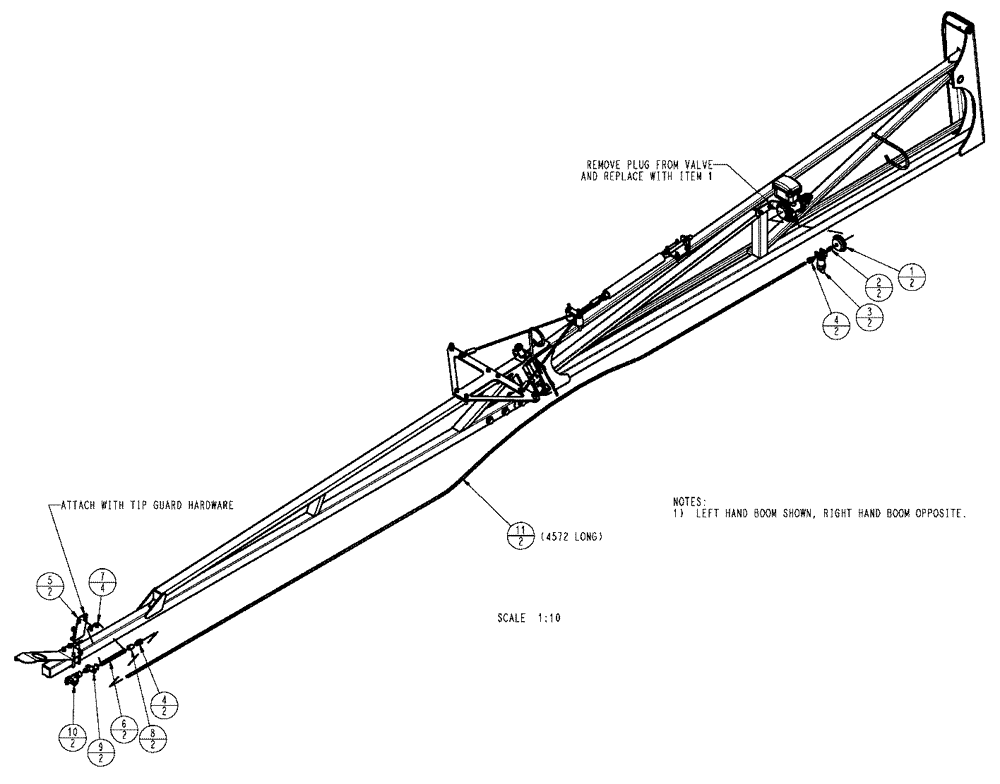

Запчасти Case IH SPX3320 (11-011) - FENCE ROW GROUP, LO-FLOW, 100’ BOOM Options

1

87265461

PLUG

2" Flange X 1/4" FP

2шт.

2

BN1420036

NIPPLE

1/4" Close SS

2шт.

3

343778A1

SOLENOID

valve, 1/4" NPT

2шт.

4

BN2399403

ADAPTER

1/4" MPT x 3/8" OD Tube, Push Lock Fitting

4шт.

5

87380590

MOUNTING PLATE

Nozzle, Fence Row

2шт.

6

BN313361

NIPPLE,1/4" NPT x 6mm SS

NIPPLE

2шт.

7

BN324022

HOSE CLAMP

8,304,SS

4шт.

8

BN73015

COUPLING

1/4" NPT SS Full

2шт.

9

BN313256

NOZZLE INJECTION

W/SWIVEL

2шт.

10

BN313255

NOZZLE INJECTION

W/CHECK VALVE

2шт.

10a

BN74619

CAP

Service Part for Ref 10

1шт.

11

BN2292088

AIR INTAKE TUBE

3/8" Black

30шт.

12

NS

NOT SERVICED

Electrical Group, Fence Row

1шт.

See Fig. 12-055

1шт.

10b

BN69558

PLUG

Service Part for Ref 10

1шт.
