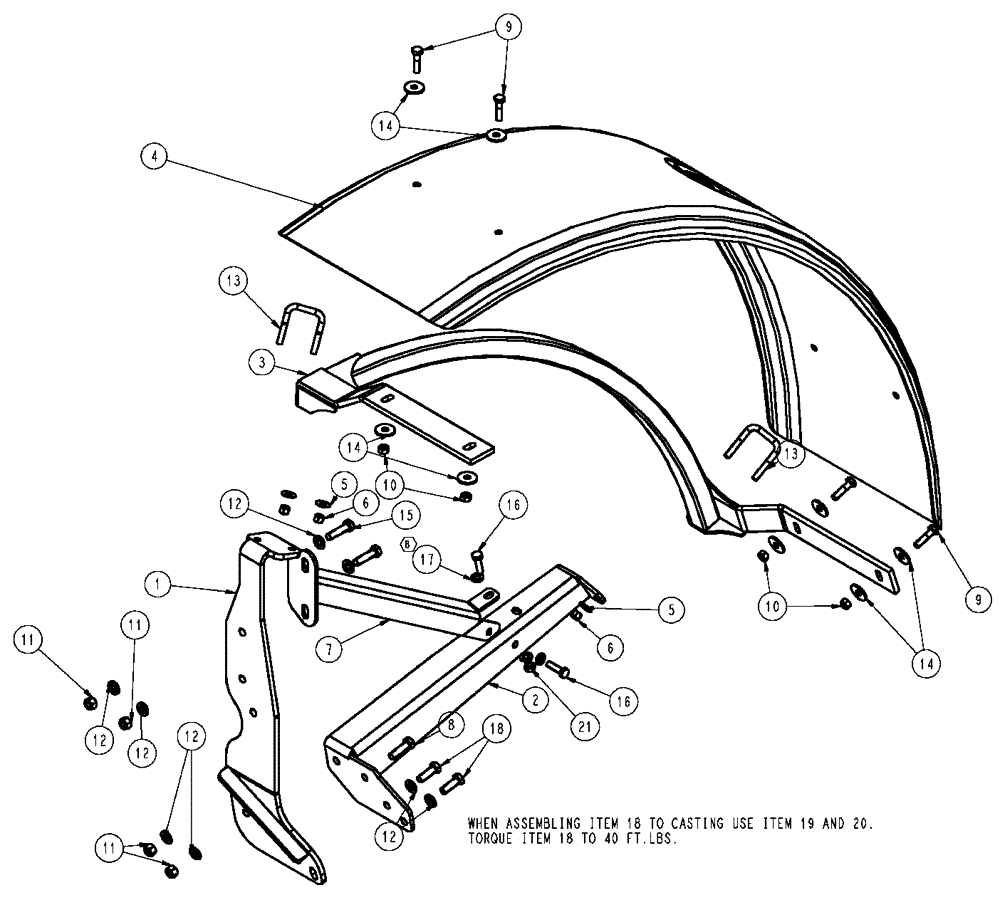

Запчасти Case IH SPX3320 (11-004) - FENDER ASSEMBLY, LH Options

1

87268333

SUPPORT

Mount, Fender LH

1шт.

2

87268370

BRACKET

Mount, Fender, Lower, LH

1шт.

3

86986713

FRAME

Fender

1шт.

4

87665204

FENDER

long, holes

1шт.

5

1994980C1

BELLEVILLE WASHER

Belleville, M10

4шт.

6

88902

NUT,3/8"-16

4шт.

7

87268326

SUPPORT

Cross Brace Fender LH

1шт.

8

86629541

BOLT,Hex, M12 x 1.75 x 40mm, Cl 8.8

2шт.

9

BN50260

BOLT,3/8"-16 x 1-1/2", Stainless Steel

4шт.

10

BN50759

LOCK NUT,3/8"-16, Nylon, Stainless

6шт.

11

100038

NUT,M12 x 1.75, Cl 8

4шт.

12

86625255

WASHER,13.3mm ID x 24.5mm OD x 3mm Thk

8шт.

13

BN319919

U-BOLT

Sq. Bend 2.06 ID x 3/8

2шт.

14

BN325184

WASHER

3/8, FW, SS, HVY, SPEC #MS815

8шт.

15

814-12045

BOLT,Hex, M12 x 1.75 x 45mm, Cl 8.8

2шт.

16

9706704

BOLT,Hex, M10 x 1.5 x 41.58mm, Cl 8.8

2шт.

17

86625252

WASHER,10.8mm ID x 21.5mm OD x 2.5mm Thk

4шт.

18

614-12035

BOLT,Hex, M12 x 1.75 x 35mm, Cl 8.8, Full Thd

2шт.

19

L18396DS

LOCTITE

primer, #770

1шт.

20

ZPX24236

SEALANT, THREAD

Loctite - #242

1шт.

21

100037

LOCK NUT,M10 x 1.5, Cl 8

2шт.
