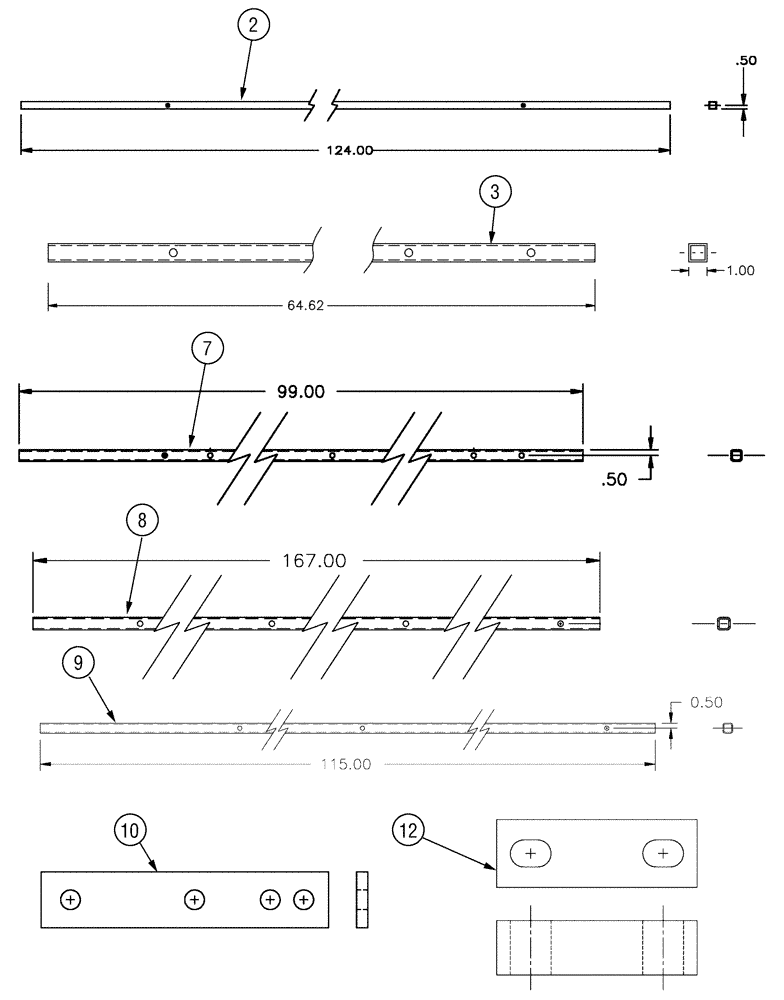

Запчасти Case IH SPX3320 (09-070) - 90’ KNOCKDOWN TUBE PACKAGE Liquid Plumbing

88902

NUT,3/8"-16

104шт.

2

BN24486

TUBE

1" Sq x 124"

1шт.

3

BN25936

TUBE

1 x 1 x 12 ga x 64.62 Long

2шт.

BN29599

PIN,9.53mm OD x 64mm L

Rework Bolt 3/8"-16 x 2.75

26шт.

BN319919

U-BOLT

Sq. Bend 2.06 ID x 3/8

24шт.

BN32823

PLUG

Cap - Tubing - Fits 1 x 1 x 14G

18шт.

7

BN67274

TUBE

nozzle mount

2шт.

8

BN67275

TUBE

nozzle mount

2шт.

9

BN67277

TUBE

nozzle mount

2шт.

10

BN67279

BRACKET

mount, dry boom

26шт.

BN67284

U-BOLT

3/8-16, Square Bend, 1.25" ID x 2.75" Long

2шт.

12

BN68213

BAR

spacer-breakaway

4шт.

BN71006

COTTER PIN

1/8", #11

26шт.
