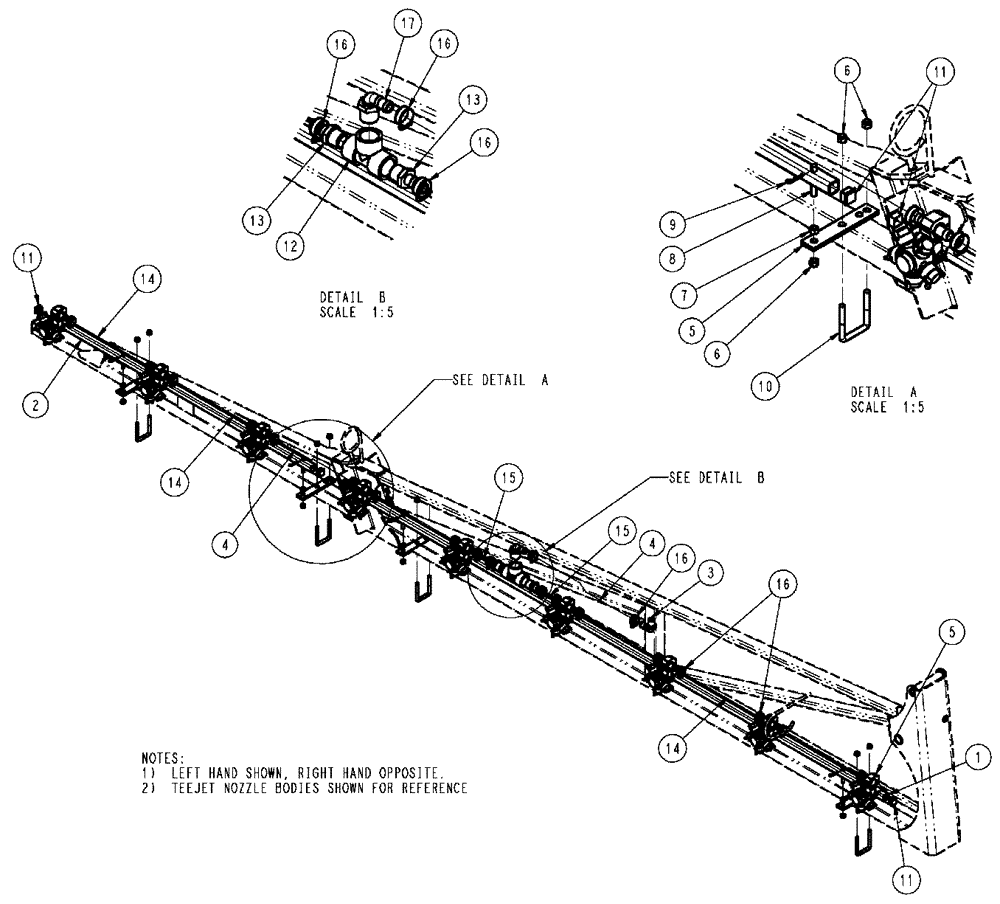

Запчасти Case IH SPX3320 (09-067) - BOOM, OUTER PLUMBING, 6 SECTION, LO-FLOW Liquid Plumbing

1

87268204

TUBE,2627 mm L

OUTER SECTION, BOOM

1шт.

2

87268205

TUBE,1300 mm L

OUTER BREAKAWAY, BOOM

1шт.

3

BN73562

FITTING,3/4" Male Thread x 3/4" 90 Degree Hose Barb

3/4" NPT x 3/4" Hose Barb, 90°

1шт.

4

BN53857

HOSE,0.75" ID x 26.00"

Flexible

2шт.

5

BN67279

BRACKET

mount, dry boom

4шт.

6

BN50759

LOCK NUT,3/8"-16, Nylon, Stainless

12шт.

7

BN50064

NUT

3/8"-16, Stainless Steel

4шт.

8

BN29599

PIN,9.53mm OD x 64mm L

Rework Bolt 3/8"-16 x 2.75

4шт.

9

BN71006

COTTER PIN

1/8", #11

4шт.

10

BN319919

U-BOLT

Sq. Bend 2.06 ID x 3/8

4шт.

11

BN32823

PLUG

Cap - Tubing - Fits 1 x 1 x 14G

4шт.

12

BN73629

TEE

1" Poly Pipe

1шт.

13

BN53666

FITTING

HOSE, BARB 1 NPT X 3/4 HOSE

2шт.

14

BN53738

FLEXIBLE HOSE,0.75" ID x 18.50"

6шт.

15

BN53737

FLEXIBLE HOSE,0.75" ID x 7.50"

2шт.

16

BN310446

HOSE CLAMP

#12, Stainless Steel

20шт.

17

BN73684

ELBOW

90° 1" MPT x 3/4" Barb

1шт.
