(09-061) - BOOM PLUMBING GROUP, 6 SEC MID, LH

Запчасти Case IH SPX3320 (09-061) - BOOM PLUMBING GROUP, 6 SEC MID, LH Liquid Plumbing

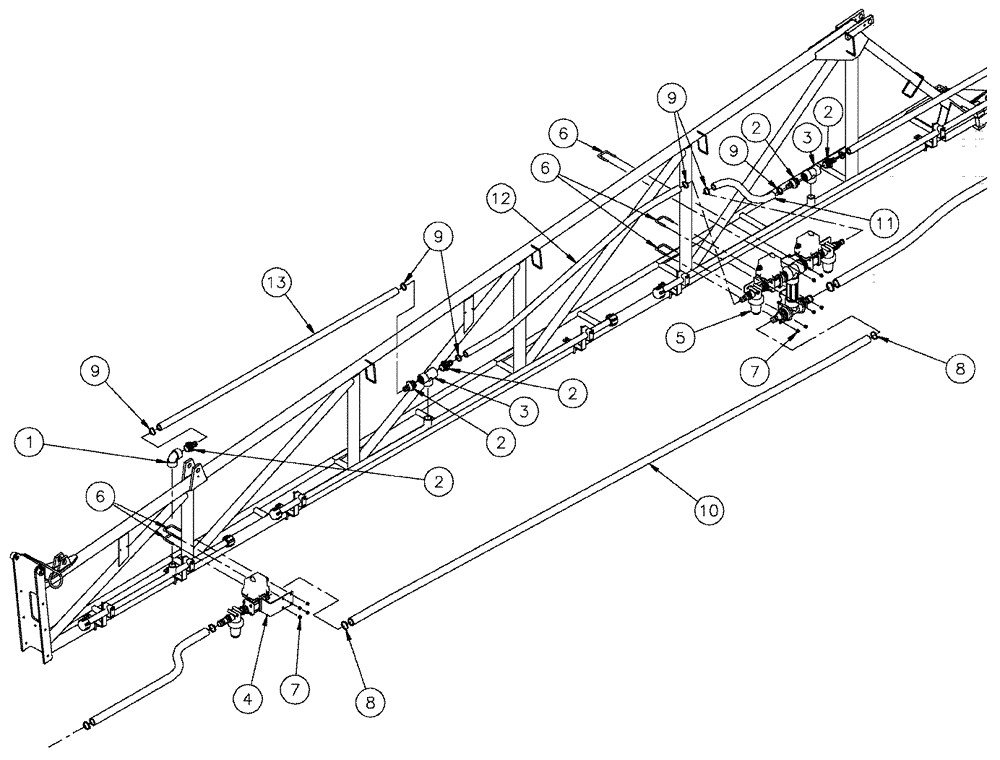

Схема запчастей Case IH SPX3320 - (09-061) - BOOM PLUMBING GROUP, 6 SEC MID, LH Liquid Plumbing
13
2
3
10
8
2
9
6
6
6
8
2
4
7
12
9
3
2
1
2
9
11
9
5
7
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

BN313202

ELBOW

1-1/4" NPT, 90°, Poly

1шт.

2

BN73657

FITTING,1-1/4" Male NPT x 1" Hose Barb, Poly

1-1/4" NPT X 1" Hose Barb, Poly

5шт.

3

BN73662

TEE

1-1/4", Poly

2шт.

4

BN321452

VALVE

PLBG GRP, 5 & 6 SECT, SEE FIG.09-019

1шт.

4

BN321453

VALVE

PLBG GRP, 5 & 6 SECT, SEE FIG.09-019

1шт.

5

BN323104

VALVE PLBG GRP, 6 SECT, SEE FIG.09-057

1шт.

6

BN319919

U-BOLT

Sq. Bend 2.06 ID x 3/8

5шт.

7

BN50759

LOCK NUT,3/8"-16, Nylon, Stainless

10шт.

8

BN310447

HOSE CLAMP

#24, 304 SS

2шт.

9

BN75990

HOSE CLAMP

SS-16.81 TO 1.5 A

8шт.

10

BN321478

HOSE,31.75mm ID x 3962.4mm L

EPDM

1шт.

11

BN53850

HOSE

EPDM 1"ID X 36"

1шт.

12

BN321476

HOSE,1.00" ID x 79.00"

EPDM

1шт.

13

BN320876

HOSE,1.00" ID x 75.00"

EPDM

1шт.
