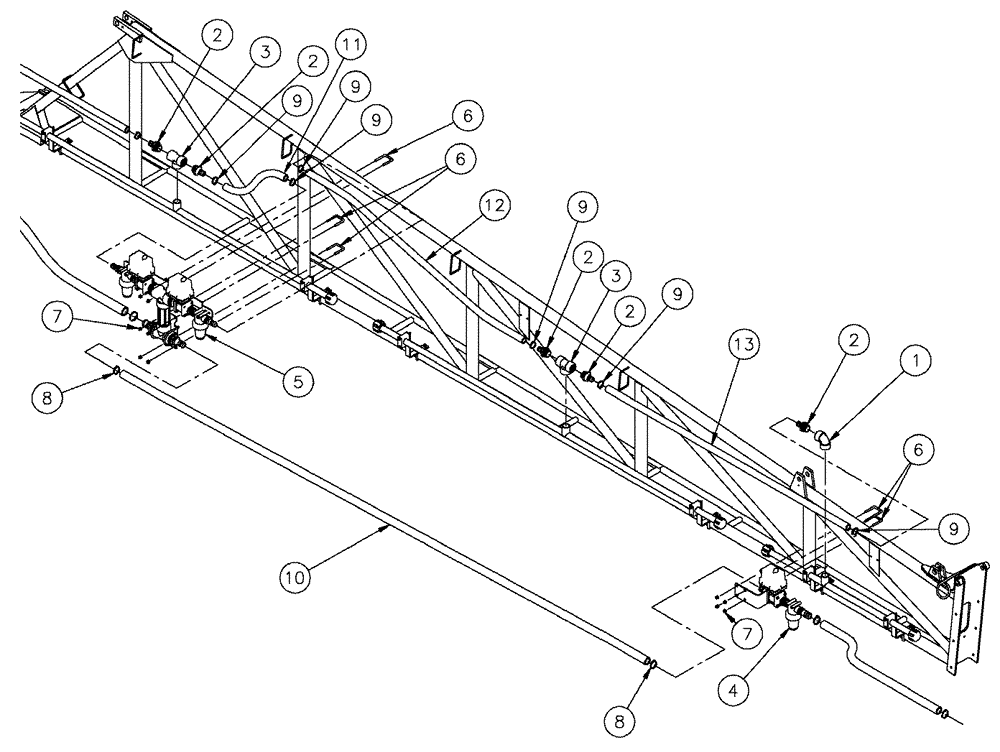

Запчасти Case IH SPX3320 (09-060) - BOOM PLUMBING GROUP, 6 SEC MID, RH Liquid Plumbing

1

BN313202

ELBOW

1-1/4" NPT, 90°, Poly

1шт.

2

BN73657

FITTING,1-1/4" Male NPT x 1" Hose Barb, Poly

1-1/4" NPT x 1" Hose Barb, Poly

5шт.

3

BN73662

TEE

1-1/4", Poly

2шт.

4

BN321452

VALVE

PLBG GRP, 5 & 6 SECT (LH), SEE FIG. 09-019

1шт.

4

BN321453

VALVE

PLBG GRP, 5 & 6 SECT (RH), SEE FIG. 09-019

1шт.

5

BN323105

6 SECT, SEE FIG. 09-056

1шт.

6

BN319919

U-BOLT

Sq. Bend 2.06 ID x 3/8

5шт.

7

BN50759

LOCK NUT,3/8"-16, Nylon, Stainless

10шт.

8

BN310447

HOSE CLAMP

#20, Stainless Steel

2шт.

9

BN75990

HOSE CLAMP

SS-16.81 TO 1.5 A

8шт.

10

BN321478

HOSE,31.75mm ID x 3962.4mm L

EPDM

1шт.

11

BN53850

HOSE

EPDM 1" ID X 36"

1шт.

12

BN321476

HOSE,1.00" ID x 79.00"

EPDM

1шт.

13

BN320876

HOSE,1.00" ID x 75.00"

EPDM

1шт.
