Запчасти Case IH SPX3320 (09-053) - SPRAYBARS Liquid Plumbing

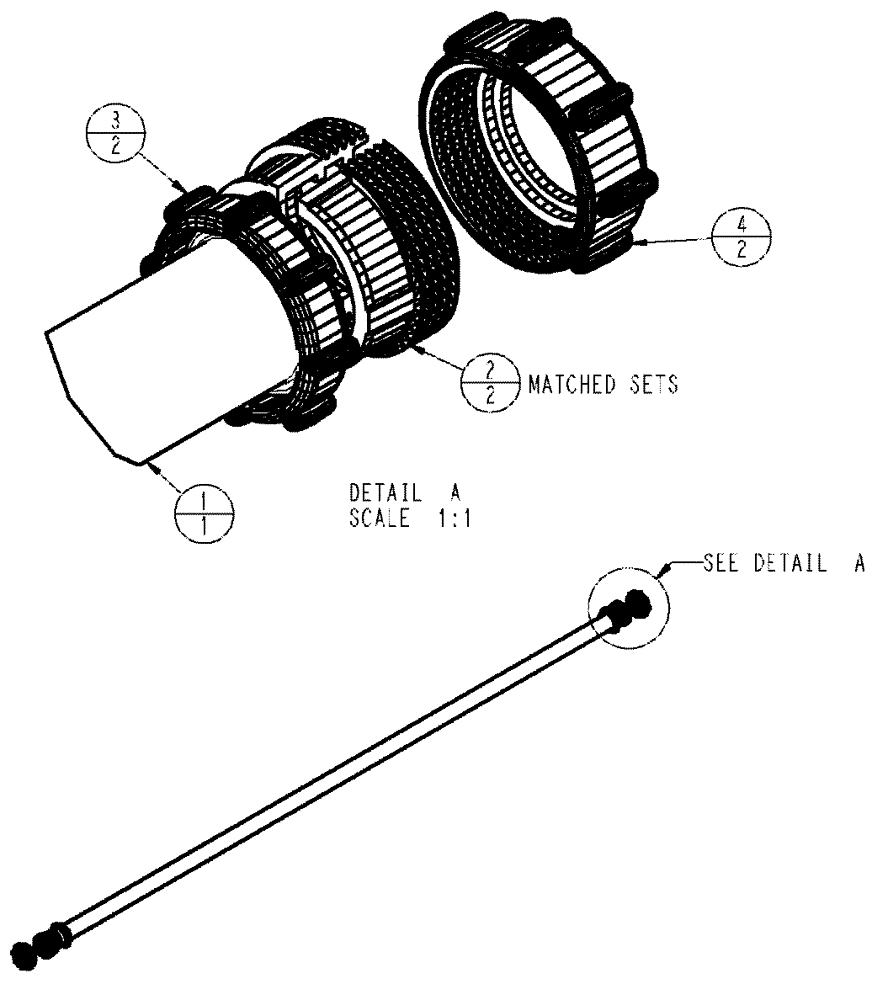

Схема запчастей Case IH SPX3320 - (09-053) - SPRAYBARS Liquid Plumbing
3
4
2
1

Артикул

Название

Примечание

Количество

1

87696867

BOOM,65" Long, 7 Holes, 20/30" Nozzle Spacing

Spraybar, 7 Nozzles, 20"/30" Nozzle Spacing, 65" Long

1шт.

1

87696868

BOOM,82" Long, 5 Holes, 20/30" Nozzle Spacing

Spraybar, 5 Nozzles, 20"/30" Nozzle Spacing, 82" Long

1шт.

1

87696869

BOOM,75" Long, 6 Holes, 20/30" Nozzle Spacing

Spraybar, 6 Nozzles, 20"/30" Nozzle Spacing, 75" Long

1шт.

1

87696870

BOOM,85" Long, 6 Holes, 20/30" Nozzle Spacing

Spraybar, 6 Nozzles, 20"/30" Nozzle Spacing, 85" Long

1шт.

1

87696871

BOOM,95" Long, 7 Holes, 20/30" Nozzle Spacing

Spraybar, 7 Nozzles, 20"/30" Nozzle Spacing, 95" Long

1шт.

1

87696872

BOOM,106" Long, 7 Holes, 20/30" Nozzle Spacing

Spraybar, 7 Nozzles, 20"/30" Nozzle Spacing, 106" Long

1шт.

2

87630104

FITTING,TWS Male End Adapter Assy - 1.315" Tube

Split Sleeve, Spraybar, Poly

2шт.

3

87630103

FITTING

Binding Ring, Spraybar, Poly

2шт.

4

87630105

NUT

Nut, Quick, Spraybar, Poly

2шт.

Выбрано товаров: 9
