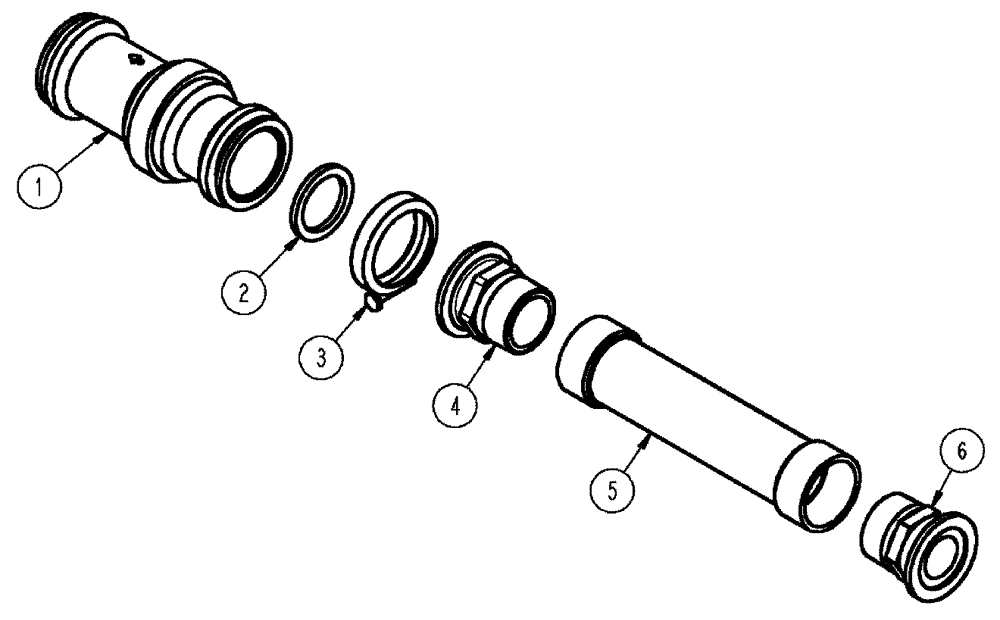

Запчасти Case IH SPX3320 (09-030) - FLOWMETER STANDARD PLUMBING Liquid Plumbing

1

87265851

METER

Flow, RFM-100, H/P

1шт.

See Fig. 09-031

1шт.

2

BN313772

GASKET,2" Full Port, EPDM

2" Flange, EPDM

1шт.

3

BN313773

CLAMP,2" Full Port

2" Flange

1шт.

4

BN314241

MANIFOLD,2" Full Port Flange x 2" Male NPT, Poly

2" MPT x 2" Flange, Poly

1шт.

5

87268152

PIPE

Standard

1шт.

6

BN303185

ADAPTER,2" Flange x 2" Male NPT, Poly

2" Flange x 2" NPT

1шт.
