(09-025) - STRAINER PLUMBING GROUP, LO-FLOW

Запчасти Case IH SPX3320 (09-025) - STRAINER PLUMBING GROUP, LO-FLOW Liquid Plumbing

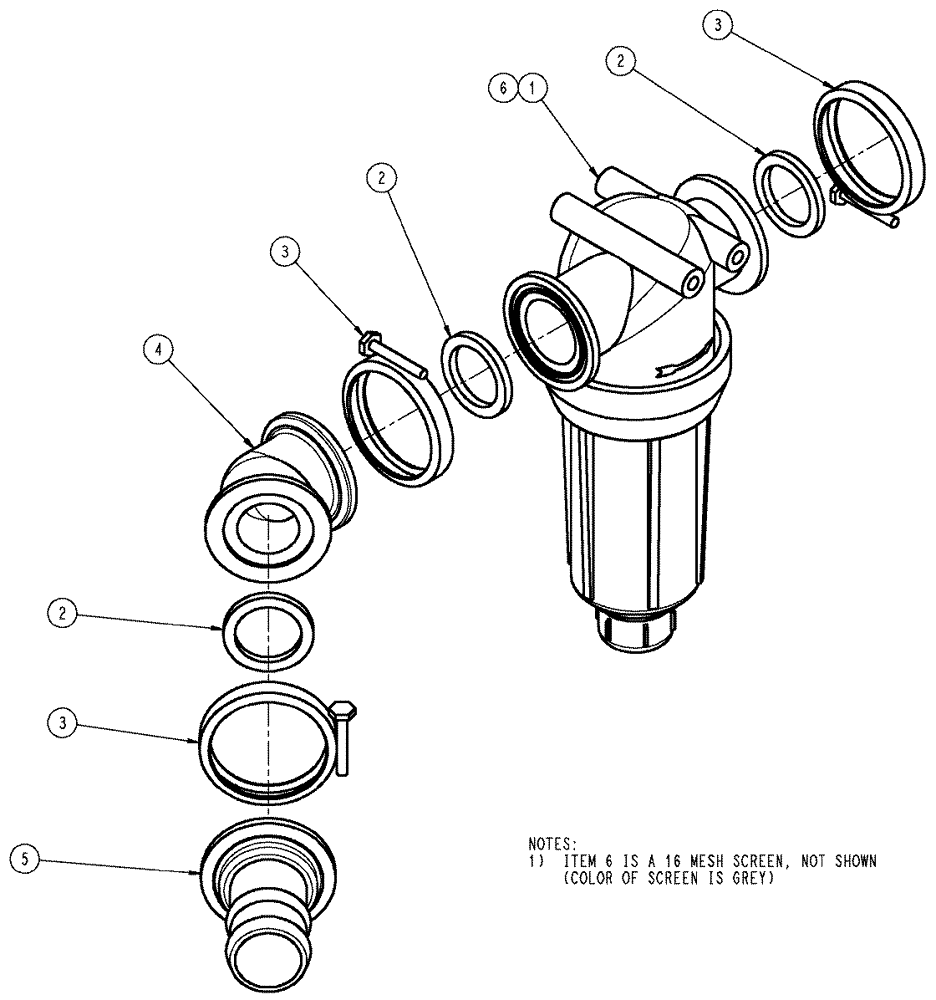

Схема запчастей Case IH SPX3320 - (09-025) - STRAINER PLUMBING GROUP, LO-FLOW Liquid Plumbing
1
3
5
6
2
3
2
3
4
2
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

87265489

FILTER STRAINER

Strainer, 2" FLS

1шт.

See Fig. 09-029

1шт.

2

BN303204

GASKET,1-1/2" EPDM Gasket

2" Flange, EPDM

3шт.

3

BN303199

CLAMP,2" Flange

2" Standard Flange

3шт.

4

87265590

COUPLING,2" x 2" 45 Degree Flange

45º, 2" Flange, Poly

1шт.

5

405780A1

FITTING,2" Flange x 2" Hose Barb

2" Flange x 2" Hose Barb, Poly

1шт.

6

87268604

SCREEN,16 Mesh, SST, Gray

16 Mesh, SS, Gray

1шт.
