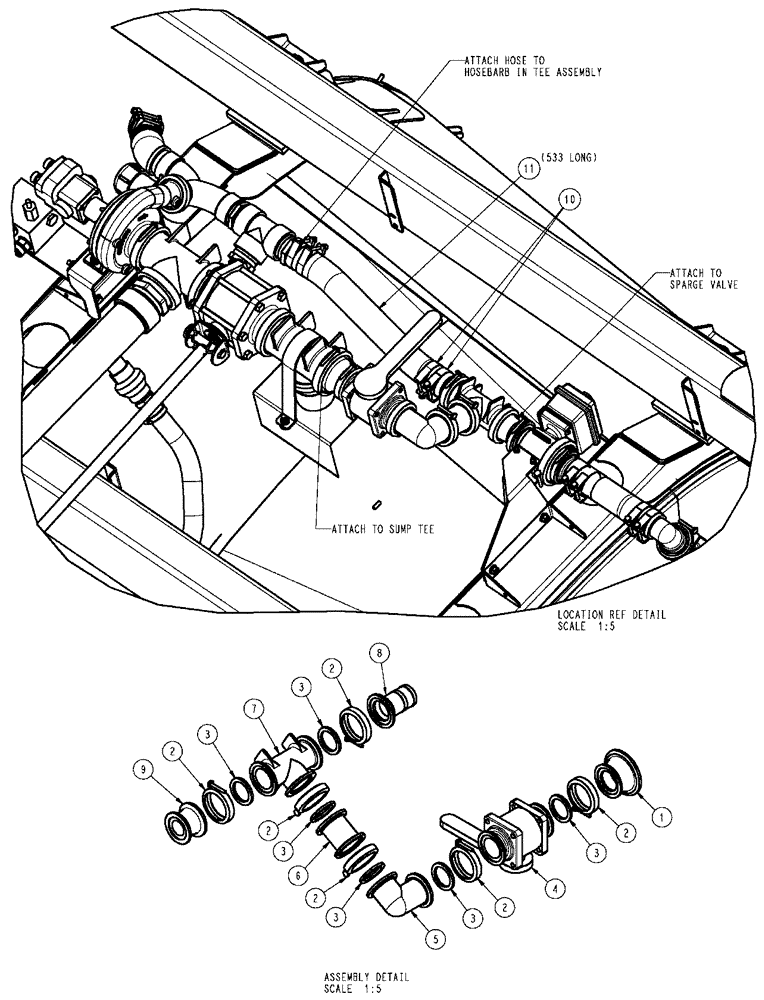

Запчасти Case IH SPX3320 (09-018) - SUCTION FILL GROUP Liquid Plumbing

1

BN321072

REDUCER,3" Flange x 2" Full Port Flange, Poly

3" Flange x 2" Full Port Flange, Poly

1шт.

2

BN313773

CLAMP,2" Full Port

2" Flange

6шт.

3

BN313772

GASKET,2" Full Port, EPDM

2" Flange, EPDM

6шт.

4

BN324057

VALVE,2" Full Port Flange x 2" Full Port Flange

2" Full Port Manifold, Poly

1шт.

5

BN316710

FITTING,90 Degree Elbow, 2" Full Port Flange x 2" Full Port Flange, Poly

90, 2.2 FLB 2.2 FLB, PP

1шт.

6

BN325292

COUPLING

STR, 2.2 FLB2.2 FLB, PP

1шт.

7

BN322550

TEE,2" Full Port Flange x 2" Full Port Flange x 2" Full Port Flange

2" Full Port Flange

1шт.

8

BN318600

FITTING,2" Full Flange x 2" Hose Barb, Poly

2" Full Flange X 2" Hose Barb, Poly

1шт.

9

BN322100

REDUCER,2" Full Port x 2" Reducer Flange

2" Full Port Flange X 2" Flange

1шт.

10

BN2403358

CLAMP,50.8mm - 63.5mm

T-Bolt Band 2 1/2"

2шт.

11

BN53841

HOSE,2.00" ID

EPDM, Air Water

1шт.
