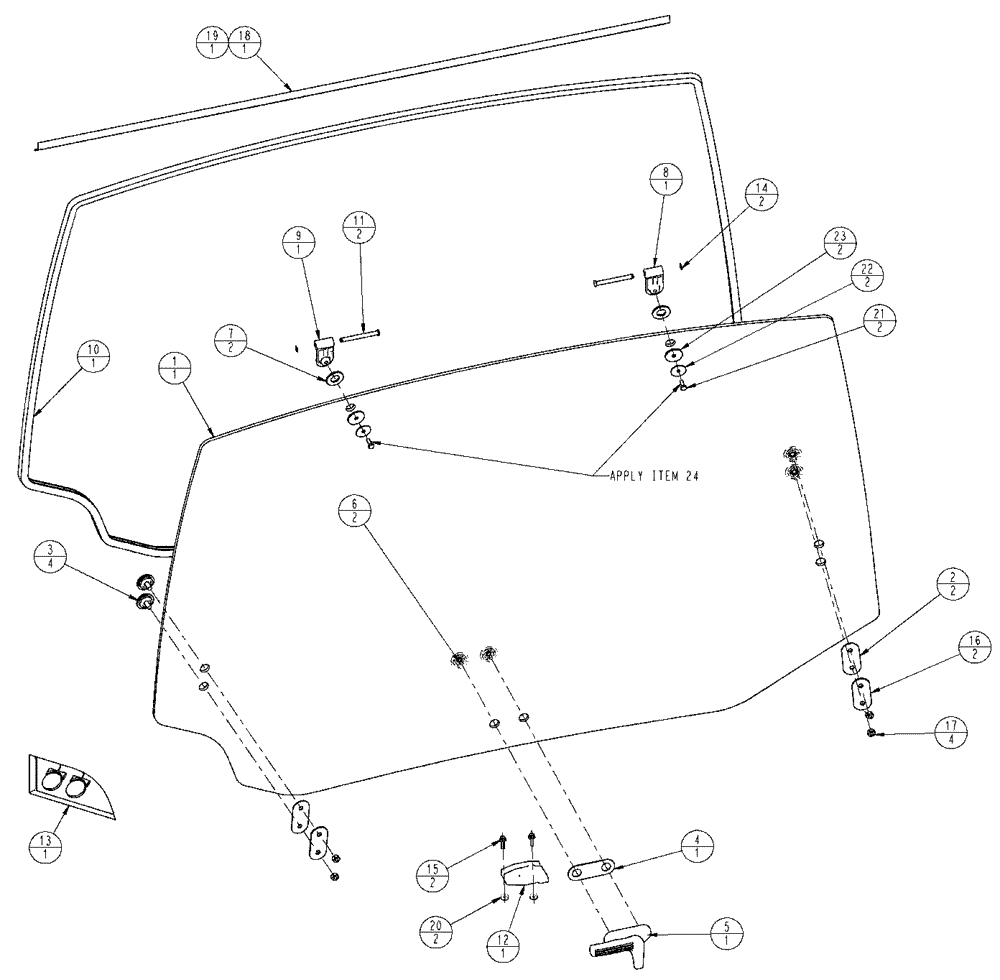

Запчасти Case IH SPX3320 (02-003) - REAR WINDOW ASSEMBLY Cab Exterior

1

87309738

GLASS,Rear Window

REAR WINDOW

1шт.

2

222787A2

PAD

CLAMPING PLATE

2шт.

3

198916A2

CAP,M8 x 20, Black

Door With Foam

4шт.

4

220935A3

PAD

CLAMPING PLATE

1шт.

5

230009A4

HANDLE

Rear Window

1шт.

See Fig. 02-004

1шт.

6

198913A3

BUTTON

Cap, Window With Foam

2шт.

7

180361A2

WASHER,18mm ID x 35mm OD x 3mm Thk

RUBBER, 35 X 18

2шт.

8

176245A2

HINGE

WINDOW, REAR LH

1шт.

9

176246A2

HINGE

WINDOW, REAR RH

1шт.

10

84160023

DOOR SEAL

LH DOOR AND REAR WI

1шт.

11

1535323C1

PIN,8mm OD x 78.5mm L

WINDOW HINGE

2шт.

12

186149A4

STRIKER PLATE

1шт.

13

254711A1

GROMMET

IMPLEMENT ACCESS

1шт.

14

87016950

SNAP RING,M7, Ext

2шт.

15

87017606

SELF-TAP SCREW,Hex Flng, M6 x 1 x 20mm

2шт.

16

87330109

PAD

plate, window

2шт.

17

86528579

NUT,M8 x 1.25

4шт.

18

359321A1

GUARD

DUST

1шт.

20

87309034

SPACER

REAR WINDOW LATCH

2шт.

21

86624997

BOLT,Hex, M6 x 16mm, Cl 10.9, Full Thd

2шт.

22

87542959

WASHER,6.15mm ID x 30mm OD x 1.5mm Thk

6.15 x 30 x 1.5 mm CST BZN

2шт.

23

87325114

RUBBER WASHER

RUBBER

2шт.

24

832-46408

NUT,M8 x 1.25, Cl 8

4шт.
