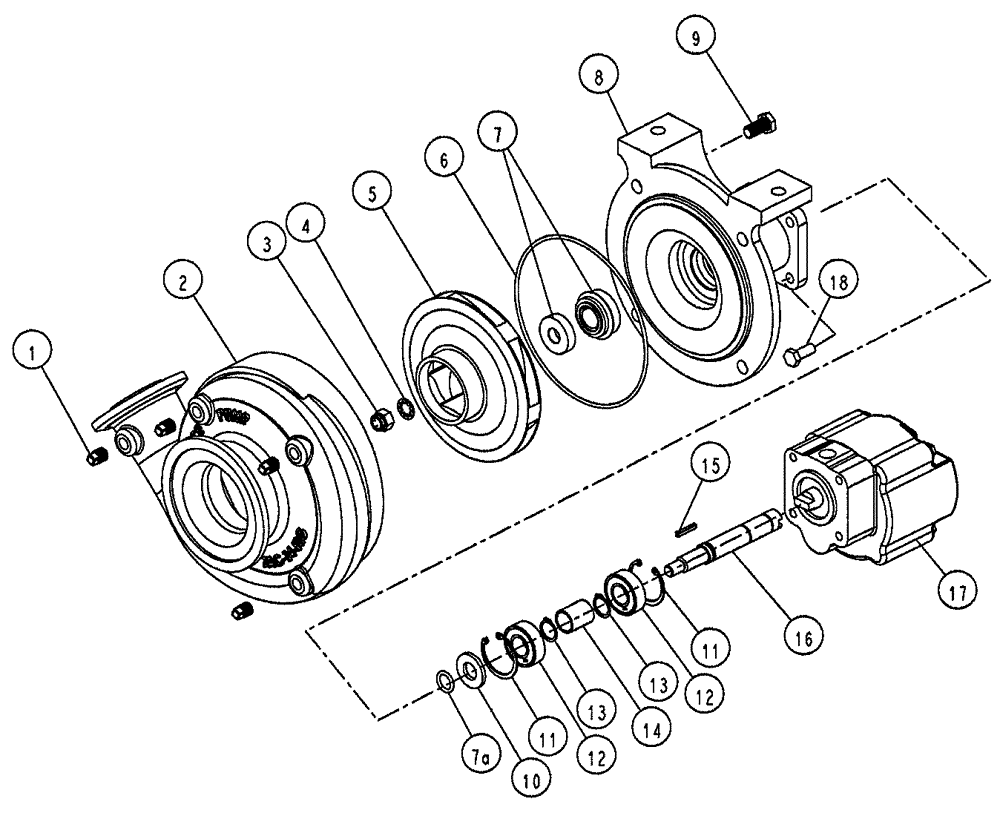

Запчасти Case IH SPX3320 (09-013[01]) - PRODUCT PUMP, ACE Liquid Plumbing

0

87269948

PUMP

Product, Serial Range: -YAT028001

1шт.

84319987R

REMAN-WATER PUMP

SPX3320 Serial Range : YAT028001 (11/06-4/09) Reman For New P/N 87269948

1шт.

84319987C

CORE-WATER PUMP

Return Number

1шт.

1

87598194

PIPE PLUG

PLUG

4шт.

2

87598189

CASTING

VOLUTE

1шт.

3

87598197

NUT

3/8 NF, SS

1шт.

4

BN325952

WASHER

3/8 STAR, SS

1шт.

5

BN325954

IMPELLER

Thermoplastic

1шт.

6

BN325955

O-RING

BODY SEAL

1шт.

7

BN325957

SEAL

MECH

1шт.

8

87598192

HOUSING

MOTOR

1шт.

9

87598199

SCREW,3/8" x 3/4"

3/8 NC X 3/4 HEAD

4шт.

10

BN325959

SLINGER

1шт.

11

BN325960

SNAP RING

INTERNAL

2шт.

12

BN325961

BALL BEARING,15.88mm ID x 34.93mm OD x 11mm W

SEALED

2шт.

13

BN325962

SNAP RING

EXTERNAL

2шт.

14

BN325963

SPACER

FOR BAC 6 SHAFT

1шт.

15

BN325964

KEY

ext.

1шт.

16

BN325965

SHAFT

EXT, KEY TANG SS

1шт.

17

87598211

HYDRAULIC MOTOR,11.49 CC

REPLACEMENT

1шт.

87598211R

REMAN-HYD MOTOR

SPX3320 (11/06-4/09)

1шт.

87598211C

CORE-MOTOR HYDRAULIC

Return Number

1шт.

18

87608631

SCREW,Hex, 5/16" x 3"

5/16 NC

4шт.

87266722

REPAIR KIT

FMC SERIES ACE

1шт.

Associated Part of Screw, Cap, 5/16 nc, P/N 87608631

1шт.

87269847

REPAIR KIT

HYD 300

1шт.

Associated Part of Screw, Cap, 5/16 nc, P/N 87608631

1шт.

87598185

PUMP

ACE, W/O HYD MOTOR

1шт.

Associated Part of Screw, Cap, 5/16 nc, P/N 87608631

1шт.
