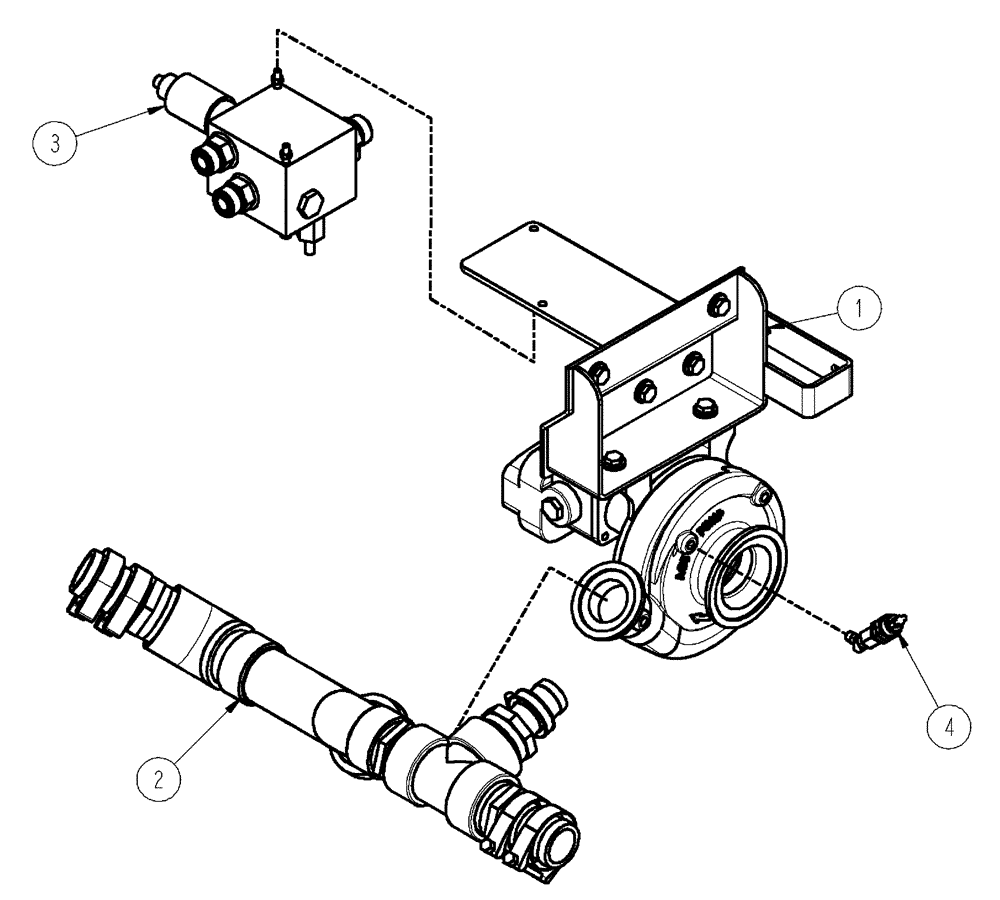

Запчасти Case IH SPX3320 (09-011) - PUMP GROUP, ACE Liquid Plumbing

1

NS

NOT SERVICED

Mounting Group, Ace Pump

1шт.

See Fig. 09-012

1шт.

2

NS

NOT SERVICED

Plumbing, Pump

1шт.

See Fig. 09-014

1шт.

3

87271210

Prod Pump Hydraulic Group, Ace

1шт.

See Fig. 06-028

1шт.

4

87271620

Group, Pressure Sender, M49

1шт.

See Fig. 09-015

1шт.
