Запчасти Case IH SPX3320 (09-002) - SIGHT GAUGE GROUP Liquid Plumbing

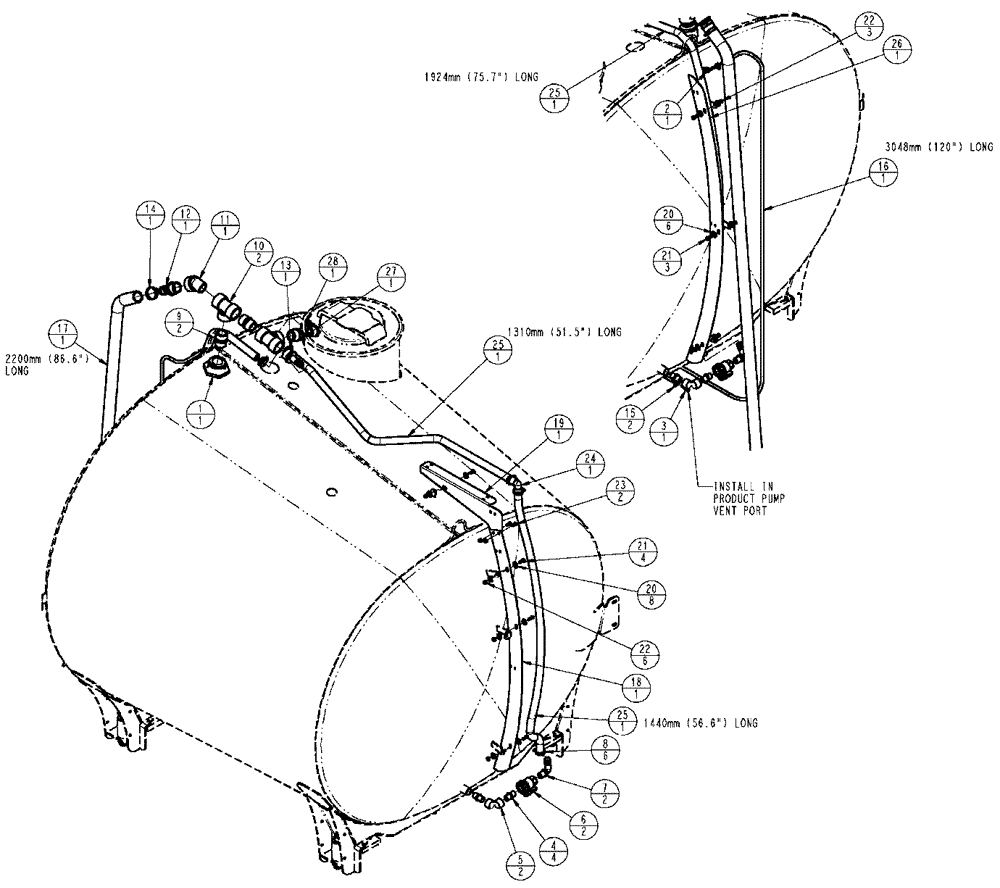

Схема запчастей Case IH SPX3320 - (09-002) - SIGHT GAUGE GROUP Liquid Plumbing
9
7
3
25
1
25
13
18
25
10
24
23
15
27
22
11
21
8
5
4
26
2
14
22
12
6
20
28
16
19
17
20
21

Артикул

Название

Примечание

Количество

1

BN73733

FITTING

1 1/2" Bulkhead

1шт.

2

BN73412

ELBOW,90 Degree,1/4" MPT x 1/4" HB

1/4" NPT x 1/4" Hose Barb, Poly

1шт.

3

BN72040

FITTING,1/8" MPT x 1/4" HB

Hose Barb, 1/8" NPT x 1/4" ID HS

1шт.

4

BN73565

NIPPLE,3/4" Male NPT x 3/4" Male NPT, Poly

3/4" Short Pipe, Poly

4шт.

5

87580531

90 ELBOW,3/4" 90 Degree Poly Elbow

.75, PP, EL075-90

2шт.

6

BN324588

VALVE

Ball 3/4" SU Poly

2шт.

7

134271C2

ELBOW,ELBOW, 90

poly 90º 3/4" mpt x 1" hb

2шт.

8

BN75990

HOSE CLAMP

#16, Stainless Steel

6шт.

9

BN73715

NIPPLE,1-1/2" Short Poly Nipple

1 1/2" Short Poly

2шт.

10

BN73714

TEE,1-1/2" Female NPT x 1-1/2" Female NPT x 1-1/2" Female NPT, Poly

1-1/2" NPT, Poly

2шт.

11

BN310467

ELBOW

1-1/2" NPT x 1-1/2" NPT, Poly, 45º

1шт.

12

413083A1

PIPE FITTING,1-1/2" Male Thread x 1-1/2" Hose Barb

Hose Barb, 1 1/2"

1шт.

13

BN304513

PIPE FITTING,1-1/2" Male Thread x 1" Hose Barb

STR, 1.5MP 1.0HB, PP

1шт.

14

BN310448

HOSE CLAMP

#28, Stainless Steel

1шт.

15

BN310450

HOSE CLAMP

#3, Stainless Steel

2шт.

16

BN72041

HOSE

1/4" Bulk EPDM Discharge

10шт.

17

BN309785

HOSE

1.5" KANAFLEX, BLK

1шт.

18

87580662

PLATE

Sight Gauge, Front

1шт.

19

87580664

PLATE

TOP SIGHT GAUGE

1шт.

20

87528983

WASHER,8.4mm ID x 25mm OD x 2mm Thk

M8 x 25 x 2, CST, DOR

14шт.

21

86980379

BOLT,Hex, M8 x 1.25 x 20mm, Cl 8.8

7шт.

22

9991588

NUT,M8 x 1.25, Cl 8

9шт.

23

86980378

BOLT,Hex, M8 x 1.25 x 16mm, Cl 8.8, Full Thd

2шт.

24

342684A1

FITTING,1" 90 Degree Poly Hose Barb Elbow

90º, 1.0HB, 1.0HB, PP

1шт.

25

BN54256

HOSE

1.0" ID x 1/8" Wall Clear Vinyl

1шт.

26

87593258

PLATE

SIGHT GAUGE, REAR

1шт.

27

BN73726

REDUCER FITTING,1-1/2" MPT x1-1/4" FPT Reducing Bushing

1-1/2" NPT X 1-1/4" NPT, Poly

1шт.

28

BN2296590

90 ELBOW

1-1/4" MPT x 1" Hose Barb, Poly

1шт.

Выбрано товаров: 28
