/ / / / / / / / (06-034[02]) - VALVE, 6-SECTION, W/O FITTINGS

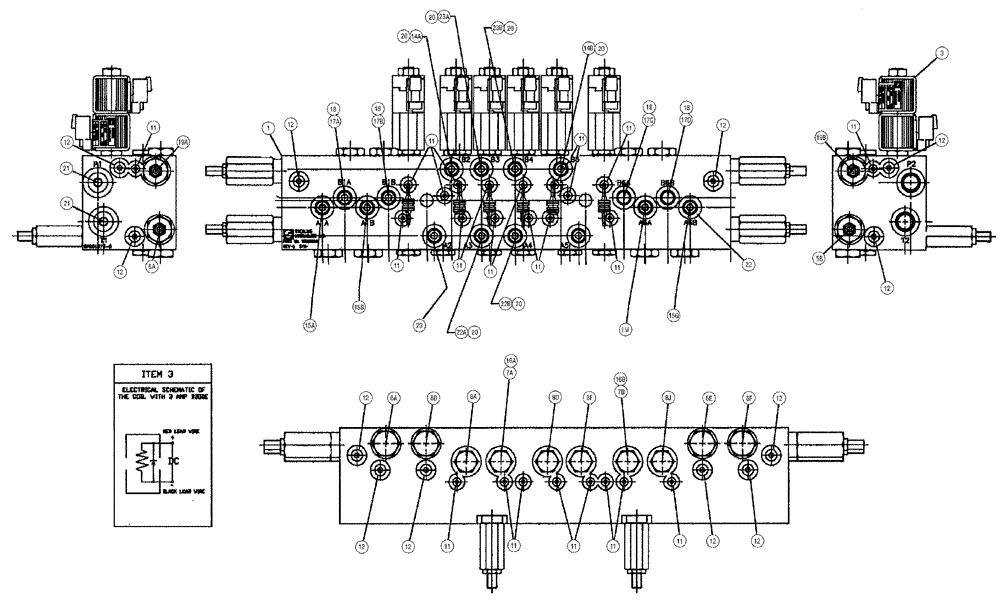

Запчасти Case IH SPX3320 (06-034[02]) - VALVE, 6-SECTION, W/O FITTINGS Hydraulic Plumbing
![Схема запчастей Case IH SPX3320 - (06-034[02]) - VALVE, 6-SECTION, W/O FITTINGS Hydraulic Plumbing](https://partsell.ru/storage/images/caseih/995114.png)
8d
11
3
21
14a
11
5b
20
16b
6b
11
11
11
20
23a
14b
19b
15a
11
17b
5a
17d
19a
12
8e
18
18
12
18
12
11
22a
12
20
7a
18
7b
20
15b
16a
12
12
21
23b
20
22
17a
11
12
11
11
22b
11
15g
12
12
11
11
11
6a
8a
12
17c
6f
11
15f
12
6e
23
20
1
12
8j
2
343278A1
VALVE
3/4 WAY SOLENOID
6шт.
3
87267925
COIL,12V
12V DC
12шт.
4
343283A1
VALVE
relief, 200 psi
2шт.
5
343284A1
VALVE
relief, 2950 psi
2шт.
6
BN314658
CHECK VALVE
8шт.
7
343285A1
VALVE
check 3 psi
2шт.
8
87590496
VALVE
check, 100 psi
10шт.
9
343286A1
PISTON
pilot
2шт.
10
343280A1
PISTON
pilot
4шт.
11
86632547
PLUG,Hex, 5/16"-24 ORB
36шт.
12
278548
PLUG,Hex, 7/16"-20 ORB
14шт.
14
84190514
PLUG
Orifice, .059
2шт.
15
343281A1
PLUG
orifice .039
6шт.
16
343287A1
PLUG
orfice, .069
2шт.
17
343288A1
DISC
orifice, .03
4шт.
18
343289A1
PLUG
HOLLOW LOCK
4шт.
19
343290A1
VALVE
relief, 1500 psi
2шт.
20
87272010
KIT
Ring Retaining
6шт.
21
NSS
NOT SOLD SEPARAT
1шт.
22
87523862
ORIFICE
Disc .050
2шт.
23
87523863
ORIFICE
Disc .042
2шт.
