(06-033) - VALVE, 6-SECTION, W/FITTINGS

Запчасти Case IH SPX3320 (06-033) - VALVE, 6-SECTION, W/FITTINGS Hydraulic Plumbing

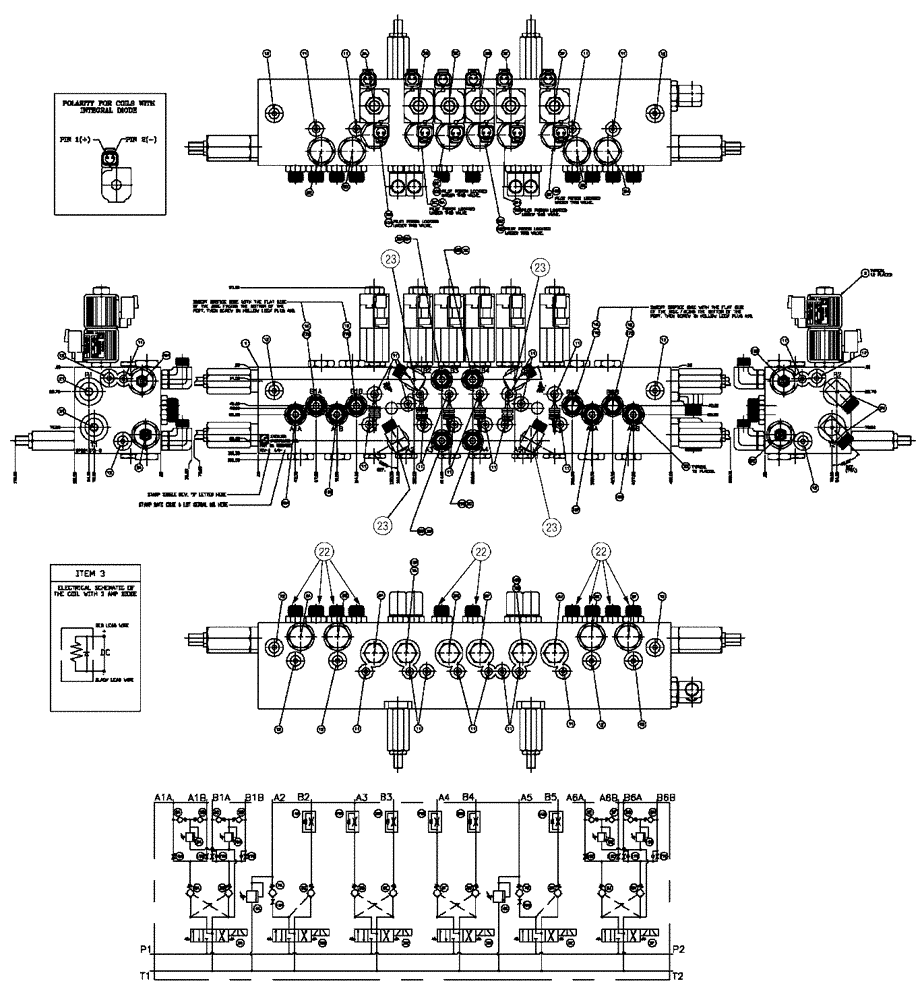

Схема запчастей Case IH SPX3320 - (06-033) - VALVE, 6-SECTION, W/FITTINGS Hydraulic Plumbing
23
22
23
23
23
22
22
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

22

BN302646

FITTING

11/16-16 ORFS x 9/16-18 ORB

12шт.

23

BN302553

ELBOW

11/16-16 ORFS x 9/16-18 ORB

4шт.

23a

237-6006

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

2шт.

23b

9993141

O-RING,0.07" Thk x 0.364" ID, -12, Cl 6, 90 Duro

11/16", OFRS

2шт.

24

BN302558

ELBOW

13/16-16 ORFS x 3/4-16 ORB

2шт.
