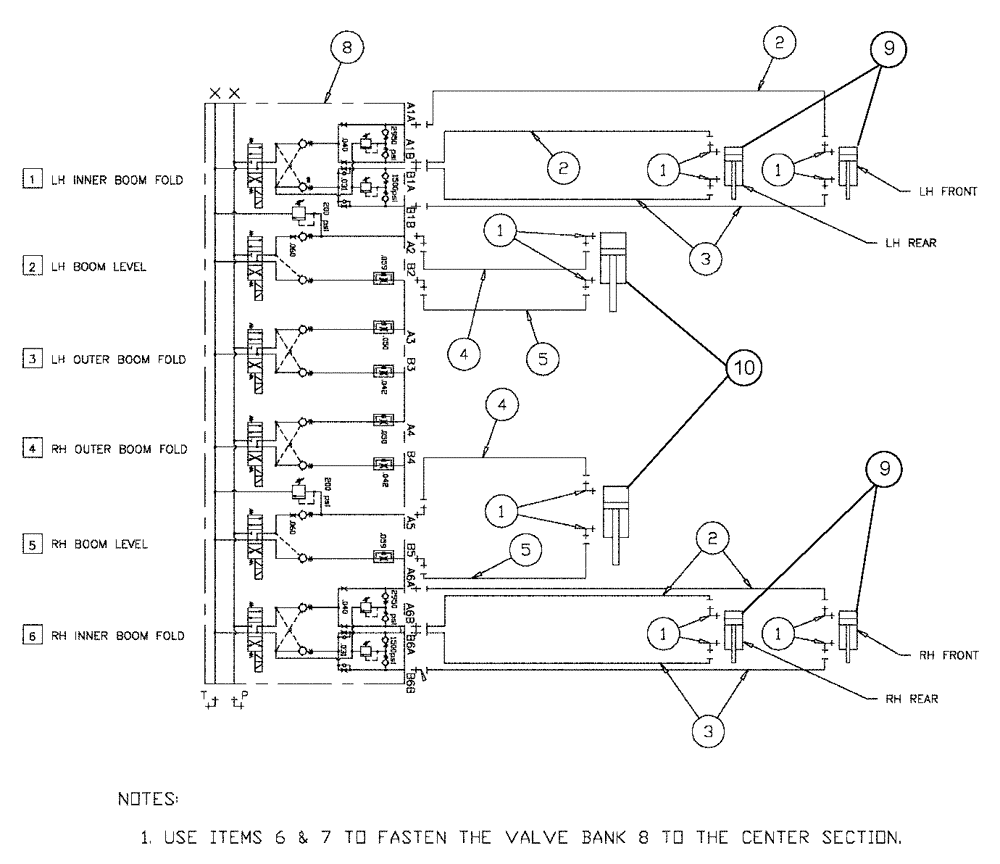

Запчасти Case IH SPX3320 (06-029) - HYDRAULIC GROUP, 60’ STANDARD BOOM Hydraulic Plumbing

1

BN302553

ELBOW

11/16-16 ORFS x 9/16-18 ORB

12шт.

1a

237-6006

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

2шт.

1b

9993141

O-RING,0.07" Thk x 0.364" ID, -12, Cl 6, 90 Duro

11/16", OFRS

2шт.

2

342591A1

HOSE ASSY.

6 x 40"

4шт.

3

BN320874

HOSE ASSY.,9.53mm ID x 1625.6mm L, SAE 100R17

6 X 64"

4шт.

4

BN324327

HOSE ASSY.

6 X 64"

2шт.

5

BN324328

HOSE ASSY.

6 X 90"

2шт.

7

100038

NUT,M12 x 1.75, Cl 8

2шт.

Not Shown

1шт.

8

87270169

HYDRAULIC VALVE

6-Bank, With Fittings

1шт.

See Fig. 06-033

1шт.

9

87266460

CYLINDER,Double Acting, 34.92mm Rod, 549.4mm Stroke

Hydraulic, 2.5 x 21.62 x 1.375

4шт.

See Fig. 07-005

1шт.

87266460R

REMAN-HYD CYLINDER

SPX3320 - PATRIOT SPRAYER (11/06-4/09)

4шт.

87266460C

CORE-HYD CYLINDER

Return Number

1шт.

10

87266461

CYLINDER ASSY.,Double Acting, 38.1mm Rod, 533.4mm Stroke

Hydraulic, 3.00 x 21 x 1.50

2шт.

See Fig. 07-003

1шт.

10

87266461R

REMAN-HYD CYLINDER

SPX3320 PATRIOT SPRAYER, Hydraulic (11/06-4/09)

2шт.

10

87266461C

CORE-HYD CYLINDER

Return Number

2шт.
