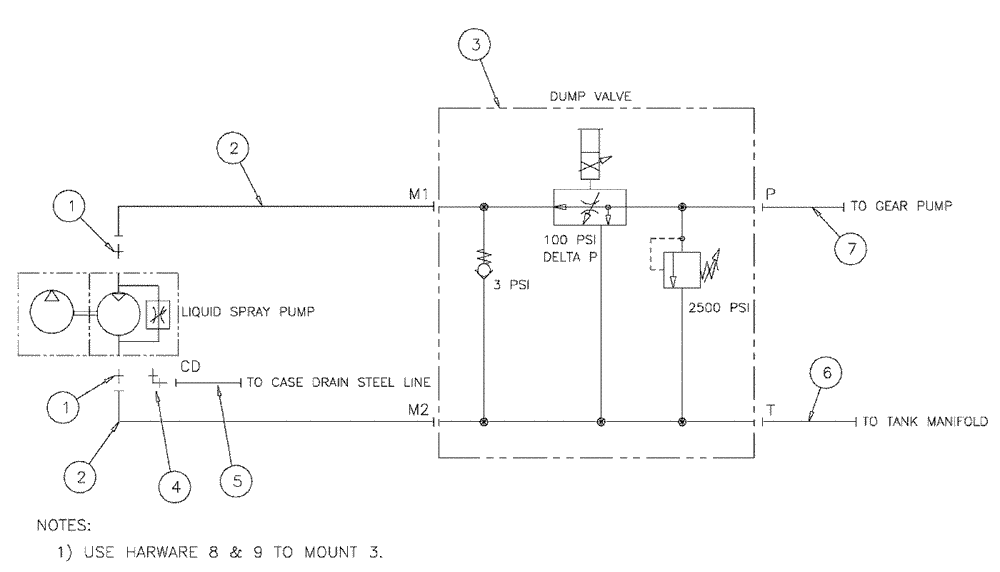

Запчасти Case IH SPX3320 (06-028) - PRODUCT PUMP, HYDRAULIC GROUP Hydraulic Plumbing

1

BN302655

FITTING

12 MOR-12 MB

2шт.

2

86986096

HOSE,19.05mm ID x 736.6mm L, SAE 100R17

12 x 29"

2шт.

3

342100A1

VALVE

Product, With Fittings

1шт.

See Fig. 06-036

1шт.

4

BN302549

ELBOW

9/16-18 ORFS x 9/16-18 ORB

1шт.

5

BN322267

HOSE

4 X 67"

1шт.

6

87271550

HOSE

12 X 45

1шт.

7

87272444

HOSE

12 X 138

1шт.

8

86980371

BOLT,Hex, M6 x 110mm, Cl 8.8

2шт.

Not Shown

1шт.

9

353308

NUT,M6 x 1.0, Cl 8

2шт.

Not Shown

1шт.
