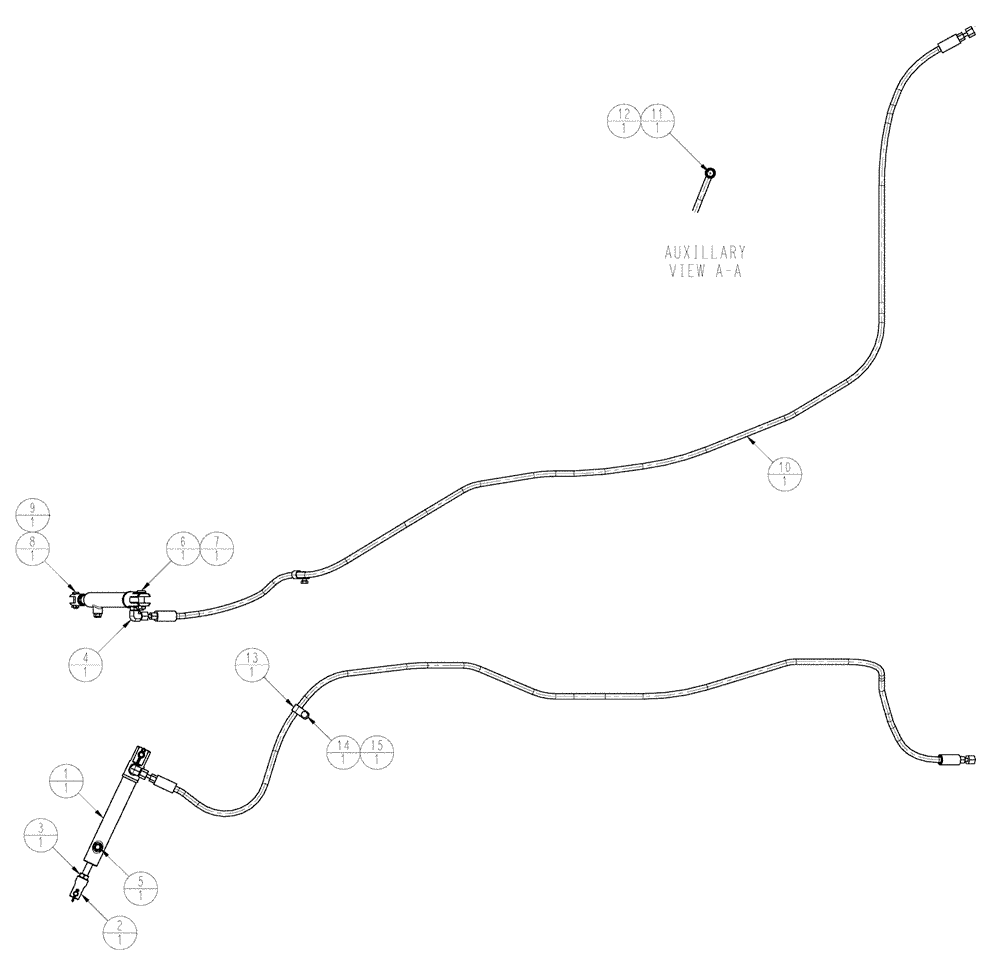

Запчасти Case IH SPX3320 (06-027) - FRONT LADDER, HYDRAULIC GROUP Hydraulic Plumbing

1

87266443

HYDRAULIC CYLINDER,12.7mm Rod, 152.4mm Stroke

1 x 6 x 0.5, Complete

1шт.

See Fig. 07-010

1шт.

2

BN21982

CLEVIS,1/2" - 20

1" Diameter CRS x 1.87

1шт.

3

BN50075

NUT

1/2"-20, Stainless Steel

1шт.

4

BN302547

90 ELBOW

9/16-18 x 7/16-20, ZND

1шт.

5

87267314

BREATHER

Sintered -4 SAE

1шт.

6

439-1824

HEADED PIN,1/2" x 1 1/2", G2

1шт.

7

432-1216

COTTER PIN,3/16" x 1"

1шт.

8

86624079

HEADED PIN,3/8" x 1 1/4", G2

1шт.

9

80756

COTTER PIN,1/8" x 3/4"

2шт.

10

87686433

HYDRAULIC HOSE

-4 x 116

1шт.

11

BN313268

ORIFICE

.042 -6 Disk

1шт.

12

BN305412

O-RING

1шт.

13

9706748

CLAMP,15.9mm, Coat, 8.7mm Bolt Hole, P Type

1шт.

14

86980379

BOLT,Hex, M8 x 1.25 x 20mm, Cl 8.8

1шт.

15

9991588

NUT,M8 x 1.25, Cl 8

1шт.
