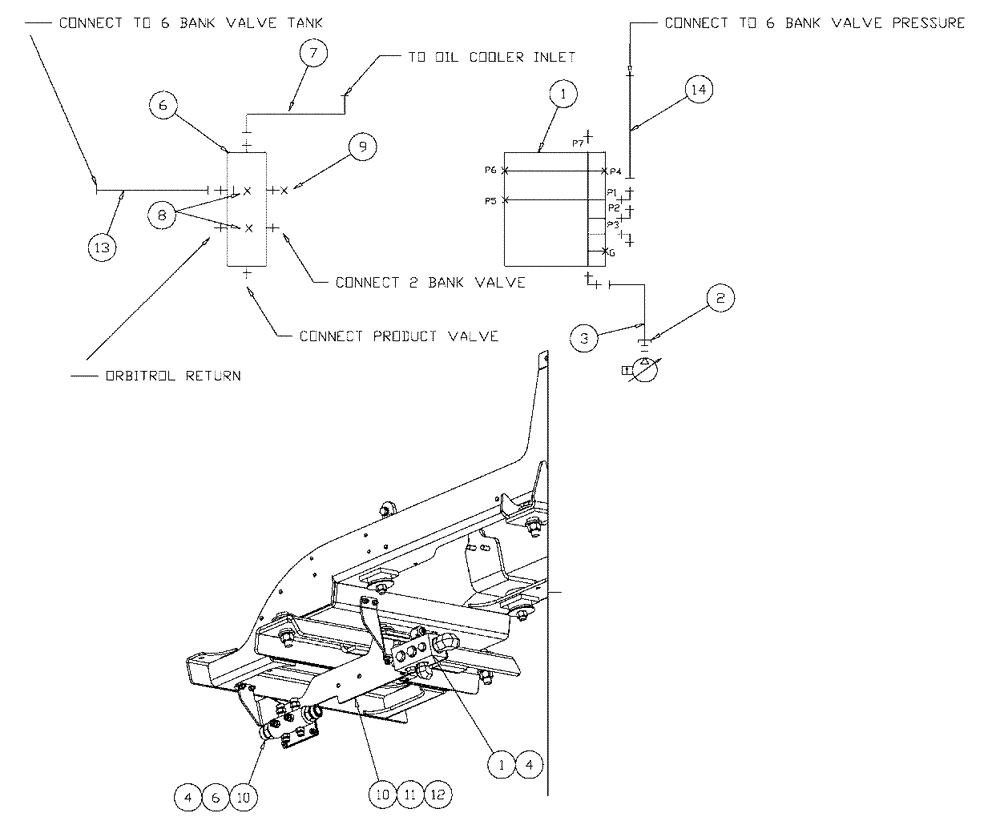

Запчасти Case IH SPX3320 (06-022) - MANIFOLD GROUP Hydraulic Plumbing

1

BN323902

MANIFOLD

PRESS. COMP, SEE FIG. 06-023

1шт.

2

BN316600

KIT

3/4 SPLIT FLGE CO 61

1шт.

86503302

O-RING,0.139" Thk x 0.984" ID, -214, Cl 6, 90 Duro

For Ref 2

1шт.

3

87271562

HOSE,19.05mm ID x 2159mm L, SAE 100R17

.12 X 85

1шт.

4

86980379

BOLT,Hex, M8 x 1.25 x 20mm, Cl 8.8

6шт.

6

BN307639

MANIFOLD

HYD. RETURN

1шт.

7

BN307811

HOSE ASSY.

#16 X 35

1шт.

8

BN305426

CAP

6 FFOR

2шт.

9

BN305427

CAP

8 FFOR

1шт.

10

9991588

NUT,M8 x 1.25, Cl 8

6шт.

11

87271472

BRACKET, SUPPORTING

VALVES

1шт.

12

86980380

BOLT,Hex, M8 x 1.25 x 25mm, Cl 8.8, Full Thd

4шт.

13

86986371

HOSE

8 x 154"

1шт.

14

87271214

HOSE

8 X 142

1шт.

15

342108A1

HOSE PROTECTION

Not Illustrated

1шт.

16

BN570007

STRAP

Not Illustrated

2шт.
