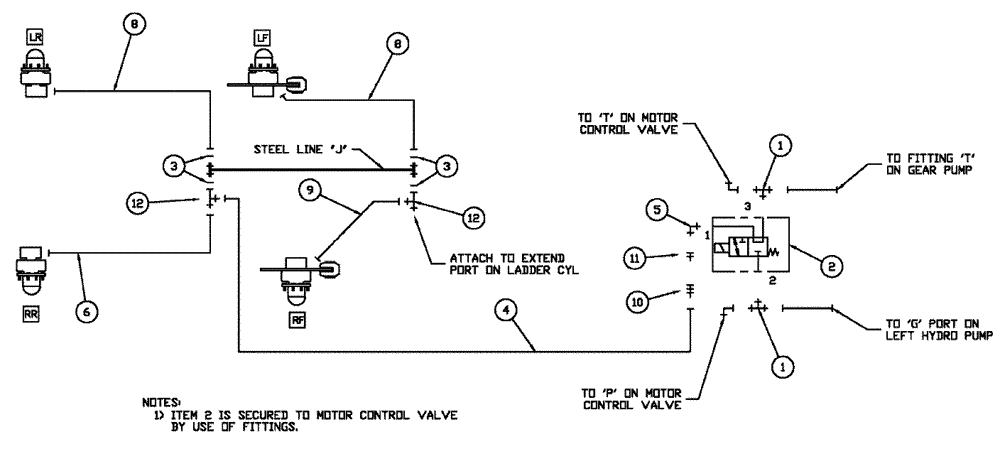

Запчасти Case IH SPX3320 (06-021) - PARK BRAKE GROUP Hydraulic Plumbing

1

BN302536

FITTING

6 MOR 6 MBX 6 MOR, PLATE PER

2шт.

2

87271739

VALVE SECTION

Brake, With Deutsch

1шт.

2a

431548A1

VALVE

3W/2P Solenoid Cartridge

1шт.

Service Parts for Ref. 2

1шт.

2b

87269968

COIL

1шт.

Service Parts for Ref. 2

1шт.

2c

87269976

SEAL KIT

SK08-3X-MM

1шт.

Service Parts for Ref. 2

1шт.

3

BN305412

O-RING

FOR 6 FFOR

4шт.

4

87720273

6 X 20

1шт.

5

BN302553

ELBOW

11/16-16 ORFS x 9/16-18 ORB

1шт.

5a

237-6006

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

2шт.

5b

9993141

O-RING,0.07" Thk x 0.364" ID, -12, Cl 6, 90 Duro

11/16", OFRS

2шт.

6

87529578

HOSE

4 X 146

1шт.

8

87574769

HOSE

4 X 170

2шт.

9

87529577

HOSE

4 X 140

1шт.

10

BN307992

COUPLING

DIAGNOSTIC COUPLER 4MNPT

1шт.

11

BN307993

NIPPLE, LUBE

NIPPLE DIAGNOSTIC NIPPLE 6FFOR

1шт.

12

BN302435

TEE

11/16 -16 ORFS x 11/16 -16 ORFS Swivel

2шт.
